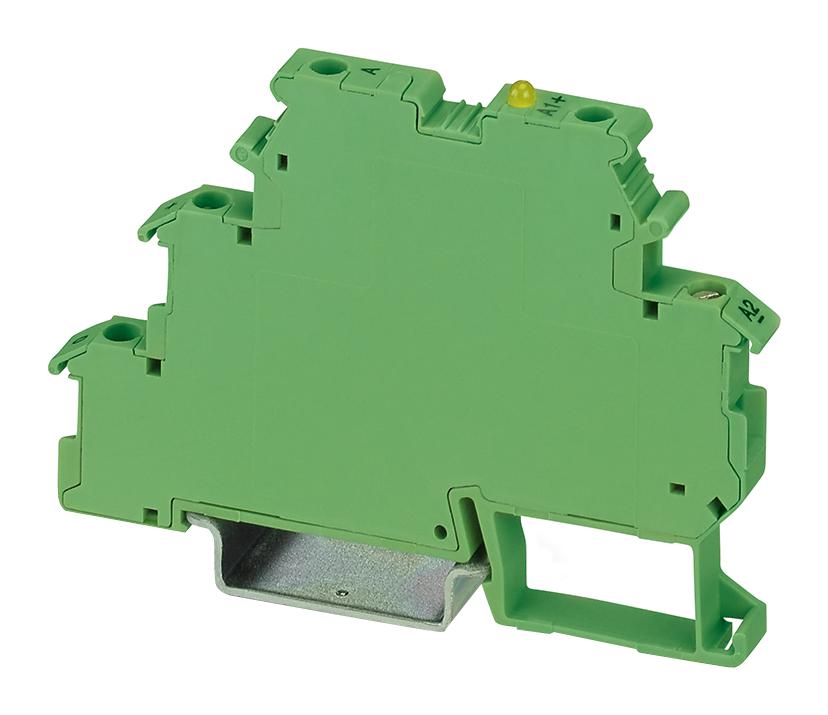

Phoenix Contact 2940223 Solid-State Relay Terminal Block
The DEK-OE-5DC/48DC/100 is a solid-state relay terminal block designed for reliable control applications. It features input of 5 VDC, output of 3-48 VDC with a maximum load current of 100 mA, and a terminal width of 6.2 mm. The device includes protection against polarity reversal, high-quality protection circuits, and supports safe switching of low-voltage signals in automation systems. Its robust construction and compliance with international standards ensure durability and compatibility for industrial automation, control panels, and electrical switching tasks. Easy to integrate with screw connection terminals and ideal for compact control solutions.
Phoenix Contact 2940223 Solid-State Relay Terminal Block Specifications:
- Input Voltage: 5 VDC
- Input Voltage Range: 0.9 to 1.1 Uy
- Maximum Input Current: 6.5 mA
- Response Time: 20 μs
- Turn-off Time: 200 μs
- Output Voltage Range: 3 VDC to 48 VDC
- Limiting Continuous Current: 100 mA
- Output Voltage Drop: <0.9 V at max current
- Connection Method: Screw connection, 8 mm width
- Conductor Cross Section (solid): Min 0.2 mm², Max 2.5 mm²
- Conductor Cross Section (stranded): Min 0.2 mm², Max 2.5 mm²
- Ambient Temperature (operation): -20°C to +60°C
- Test Voltage Input/Output: 2.5 kV AC
- Protection: Polarity reversal, free-wheeling diode, damping diode
- Standards: IEC 60664, EN 50178, IEC 62103
- Certification: UL, GOST
Buy the Buy Phoenix Contact DEK-OE-5DC/48DC/100 Part Number 2940223 Online
Order the Phoenix Contact DEK-OE-5DC/48DC/100 today online for seamless integration into your automation or control panel. Designed for reliable switching with low-voltage inputs of 5 VDC and outputs up to 48 VDC at 100 mA, this relay features protection against polarity reversal and complies with international safety standards. Its compact size, screw connection terminals, and quick response time make it an ideal choice for industrial control applications, ensuring durability and consistent performance in demanding environments. Purchase now and enhance your control system efficiency.
Buy Phoenix Contact DEK-OE-5DC/48DC/100 now and experience unmatched reliability and performance for your control systems, with easy installation and robust protection.
Frequently Asked Questions
Where can I buy Phoenix Contact 2940223?
You can click on the BUY or RFQ button to purchase 2940223 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2940223?
You can download the 2940223 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2940223?
Phoenix Contact
