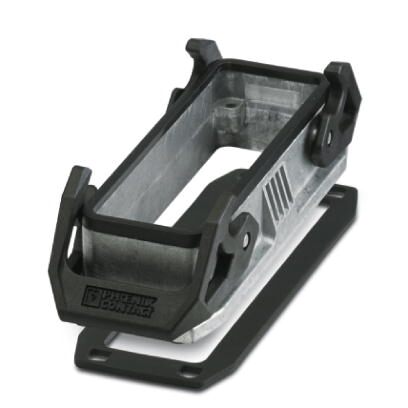

Phoenix Contact HCSTAB24BWDELCAL Panel Mount Base
The PHOENIX CONTACT HC-STA-B24-BWD-ELC-AL is a HEAVYCON B24 panel mounting base, engineered for demanding industrial environments. Constructed from salt-water-resistant aluminum with an uncoated surface, this base provides exceptional durability and corrosion resistance. The double locking latch ensures secure connections, while the conductive profile gasket offers reliable shielding against electromagnetic interference. It is designed to accommodate contact inserts such as HC-B24, BB46, D64, DD108, and M, making it versatile for various applications. The panel mount base is ideal for applications requiring robust and reliable connectivity in harsh conditions, such as industrial automation, power transmission, and heavy machinery.
Phoenix Contact HCSTAB24BWDELCAL Panel Mount Base Specifications:
- Packing unit: 1 pc
- GTIN: 4046356927512
- Weight per Piece (excluding packing): 140.000 g
- Custom tariff number: 85389099
- Country of origin: China
- Height: 30.5 mm
- Width: 53 mm
- Length: 140.5 mm
- Length of the assembly cutout: 113 mm
- Width of the assembly cutout: 35 mm
- Degree of protection (IP): IP66
- Degree of protection (NEMA): 4 (UL 50e), 4X (UL 50e), 12 (UL 50e)
- Ambient temperature (operation): -40 °C ... 125 °C
- Note: For contact inserts HC-B24, BB46, D64, DD108, M
- Size: B24
- Housing type: Panel mounting base
- Color: gray aluminum
- Locking type: with double locking latch
- Torque (Mounting screw): 1.5 Nm ... 2 Nm
- Screw connection: none
- Housing material: Die-cast aluminum, salt water resistant
- Housing surface material: uncoated
- Seal material: NBR, conductive
- Material lock: Polyamide
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e, No hazardous substances above threshold values
- eCl@ss 5.1: 27261200
- eCl@ss 6.0: 27261200
- eCl@ss 7.0: 27440202
- eCl@ss 8.0: 27440202
- eCl@ss 9.0: 27440202
- ETIM 4.0: EC000437
- ETIM 5.0: EC000437
- ETIM 6.0: EC000437
- ETIM 7.0: EC000437
- UNSPSC 13.2: 31261501
