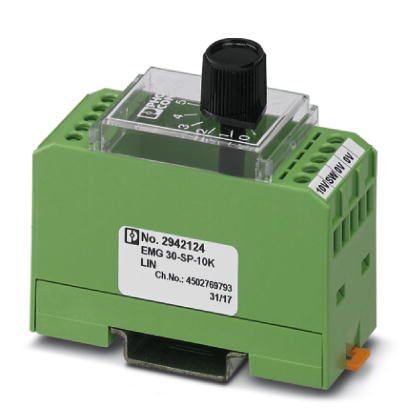

Phoenix Contact 2942124 Setpoint Adjuster 10kΩ
The Phoenix Contact EMG 30-SP-10K LIN is a versatile setpoint adjuster used to define setpoints in conjunction with potentiometers. It offers a 10kΩ resistance value and is housed in a durable polycarbonate fiber reinforced PC-F material. This adjuster is ideal for applications requiring precise setpoint control, such as industrial automation, process control, and test and measurement equipment. Its robust construction and reliable performance ensure consistent and accurate setpoint adjustments in demanding environments. The unit features screw connection terminals and supports a wide range of conductor sizes.
Phoenix Contact 2942124 Setpoint Adjuster 10kΩ Specifications:
- Packing unit: 1 STK
- GTIN: 4017918080617
- Weight per Piece (excluding packing): 59.970 g
- Custom tariff number: 85334010
- Country of origin: Germany
- Width: 30 mm
- Height: 75 mm
- Depth: 68 mm
- Ambient temperature (operation): 0 °C ... 40 °C
- Potentiometer: 10 kΩ
- Resistance tolerance: ±20 %
- Potentiometer, current-carrying capacity: 0.5 W
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 14
- Stripping length: 8 mm
- Screw thread: M3
- Connection method: Screw connection
- Mounting position: any
- Housing material: Polycarbonate fiber reinforced PC-F
- Color: green
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- eCl@ss 5.0: 27371227
- eCl@ss 5.1: 27371227
- eCl@ss 6.0: 27371227
- eCl@ss 7.0: 27371227
- eCl@ss 8.0: 27371227
- eCl@ss 9.0: 27371227
- ETIM 4.0: EC001027
- ETIM 5.0: EC001027
- ETIM 6.0: EC001027
- UNSPSC 6.01: 30211506
- UNSPSC 7.0901: 39121008
- UNSPSC 11: 39121008
- UNSPSC 12.01: 39121008
- UNSPSC 13.2: 41113633
