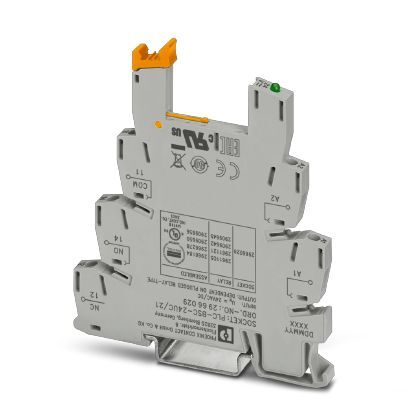

Phoenix Contact 2966029 PLC Relay Socket
The Phoenix Contact PLC-BSC-24UC/21 relay socket is a versatile component designed for use in programmable logic controller (PLC) systems. It provides a convenient and secure interface for mounting and connecting relays, offering a robust solution for industrial automation applications. The socket features a screw connection for reliable electrical contact, an LED indicator for status monitoring, and a bridge rectifier to protect the input circuit. Its compact design allows for efficient use of space on DIN rails, and its V0 flammability rating ensures safety in various environments. This relay socket is a critical component for controlling and monitoring relay functions in industrial machinery, automation systems, and other electrical applications.
Phoenix Contact 2966029 PLC Relay Socket Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- Weight per Piece (excluding packing): 36.0 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Nominal input voltage UN: 24 V AC/DC
- Status display: LED
- Protective circuit: Bridge rectifier
- Connection name (input side): Input side
- Connection method (input side): Screw connection
- Stripping length (input side): 8 mm
- Screw thread (input side): M3
- Conductor cross section solid (input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (input side): 26 ... 14
- Connection name (output side): Output side
- Connection method (output side): Screw connection
- Stripping length (output side): 8 mm
- Screw thread (output side): M3
- Conductor cross section solid (output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (output side): 26 ... 14
- Color: green
- Operating mode: 100% operating factor
- Flammability rating according to UL 94: V0
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Connection in acc. with standard: CUL
- Width: 6.2 mm
- Height: 80 mm
- Depth: 94 mm
- Ambient temperature (operation): -40 °C ... 60 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- eCl@ss 4.0: 27371102
- eCl@ss 4.1: 27371102
- eCl@ss 5.0: 27371603
- eCl@ss 5.1: 27371603
- eCl@ss 6.0: 27371603
- eCl@ss 7.0: 27371603
- eCl@ss 8.0: 27371603
- ETIM 2.0: EC001456
- ETIM 3.0: EC001456
- ETIM 4.0: EC001456
- ETIM 5.0: EC001456
- UNSPSC 6.01: 30211917
- UNSPSC 7.0901: 39121516
- UNSPSC 11: 39121516
- UNSPSC 12.01: 39121516
- UNSPSC 13.2: 39121516
