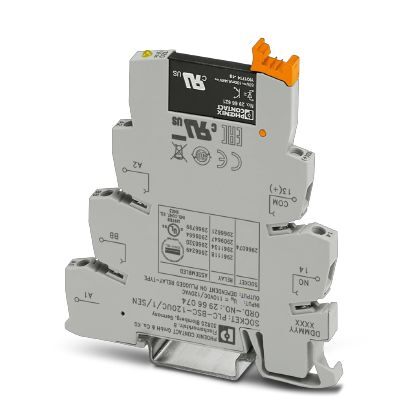

Phoenix Contact 2966799 PLC Interface Module
This PLC interface module is designed for input functions, featuring a basic terminal block with screw connections and a plug-in miniature solid-state relay. Suitable for DIN rail mounting (NS 35/7.5), it offers a 1 N/O contact with input voltage options of 120 V AC or 110 V DC, and an output voltage range of 3 to 48 V DC at 100 mA. It enables efficient system connection with space-saving design, safe isolation according to DIN EN 50178, and quick plug-in functionality, making it ideal for automation and control applications.
Phoenix Contact 2966799 PLC Interface Module Specifications:
- Ambient temperature (operation): -25 °C to 60 °C
- Ambient temperature (storage/transport): -25 °C to 70 °C
- Conductor cross section solid: 0.14 mm² to 2.5 mm²
- Conductor cross section flexible: 0.14 mm² to 2.5 mm²
- Conductor cross section AWG: 26 to 14
- Input voltage: 120 V AC / 110 V DC
- Output voltage range: 3 to 48 V DC
- Output current: 100 mA maximum
- Dimensions: compatible with DIN rail NS 35/7.5
- Flammability rating: UL 94V-0
- Standards and Regulations: UL Recognized, UL Listed, cUL Recognized, cUL Listed, EAC, GL
- Classifications: eCl@ss 4.0 27371102, 5.0 27371001, 8.0 27371604, 9.0 27371604
- Approvals: UL Listed, cUL Recognized
- Protection and safety: Safe isolation according to DIN EN 50178
- Connection type: Screw connection, plug-in miniature relay, DIN rail mounting
- Weight: approximately 33.94 grams
Buy the Buy Phoenix Contact PLC-OSC-120UC/ 48DC/100/SEN Part Number 2966799 Online
Enhance your automation system by ordering the Phoenix Contact PLC-OSC-120UC/ 48DC/100/SEN today online. This module offers quick connection, safe isolation, and versatile input/output options suited for DIN rail mounting. Its compact design saves space while providing reliable performance with a maximum output of 3 to 48 V DC at 100 mA. Ideal for industrial control systems, it simplifies wiring, ensures compliance with safety standards, and guarantees efficient operation, making it the perfect choice for professional automation projects.
Order your Phoenix Contact series PLC-OSC-120UC/ 48DC/100/SEN today and ensure reliable input control with efficient, space-saving relay modules for industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact 2966799?
You can click on the BUY or RFQ button to purchase 2966799 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2966799?
You can download the 2966799 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2966799?
Phoenix Contact
