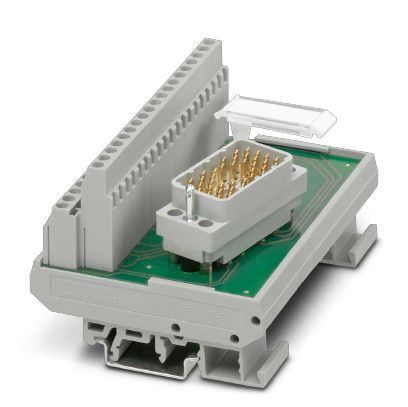

Phoenix Contact 2976284 Interface Module
The PHOENIX CONTACT UMK-EC38/38-XOL interface module is designed to facilitate connections between field-level devices and controller-level systems. It features a screw connection on one side and an ELCO connector on the other, enabling seamless integration into various automation setups. The module supports a wide range of conductor sizes, ensuring compatibility with diverse wiring configurations. Its robust design and adherence to industry standards make it suitable for demanding industrial environments. It is commonly used in automation systems, machine control panels, and other applications requiring reliable data transmission and power distribution.
Phoenix Contact 2976284 Interface Module Specifications:
- Packing unit: 1 pc
- GTIN: 4017918089313
- Weight per Piece (excluding packing): 232.900 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Width: 101.5 mm
- Height: 77 mm
- Depth: 57.5 mm
- Ambient temperature (operation): -20 °C ... 50 °C
- Maximum altitude: ≤ 2000 m
- Degree of protection: IP00
- Max. permissible operating voltage: 25 V AC or 60 V DC
- Max. permissible current (per path): 2 A
- Max. permissible total current: 76 A
- Number of positions: 38
- Mounting position: any
- Stripping length: 8 mm
- Screw thread: M3
- Conductor cross section solid: 0.2 mm² ... 4 mm²
- Conductor cross section flexible: 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG: 24 ... 12
- Connection name (Field level): Field level
- Connection in acc. with standard: IEC / EN
- Connection method (Field level): Screw connection
- Connection name (Controller level): Controller level
- Connection method (Controller level): ELCO connector
- Coding: 1-1
- Number of connections: 1
- Note: Pin strip type 8016, left
- Rated insulation voltage: 85 V
- Rated surge voltage: 0.8 kV
- Pollution degree: 2
- Overvoltage category: II
- REACh SVHC: Lead 7439-92-1
- China RoHS: Environmentally Friendly Use Period = 50
