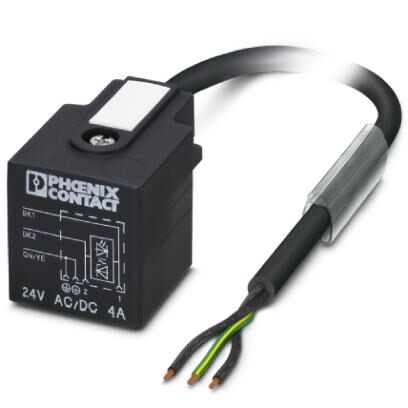

Phoenix Contact SAC3P100PURA1LZ 3-Position Sensor Cable
The PHOENIX CONTACT SAC-3P-10 0-PUR/A-1L-Z is a high-quality sensor/actuator cable engineered for demanding industrial environments. This 10-meter cable features a 3-position configuration, utilizing a durable and halogen-free PUR cable for excellent resistance to oils, chemicals, and abrasion. The integrated Zener diode provides crucial protection against voltage spikes, enhancing system reliability. The cable is designed for easy diagnostics with its integrated LED indicator and offers a robust valve connector for secure connections. Ideal for applications in automated manufacturing, process control, and building automation where reliable signal transmission is paramount.
Phoenix Contact SAC3P100PURA1LZ 3-Position Sensor Cable Specifications:
- Length of cable: 10 m
- Stripping length of the free conductor end: 50 mm
- Ambient temperature (operation) - valve plug: -20 °C ... 85 °C
- Degree of protection: IP65
- IP67: IP67
- Rated current at 40°C: 4 A
- Rated voltage: 24 V
- Number of positions: 3
- Insulation resistance: ≥ 100 MΩ
- Valve connector standard: EN 175301-803
- Status display: 1 LED
- Protective circuit/component: Z diode
- Overvoltage category: III
- Degree of pollution: 3
- Torque (Valve connector): 0.6 Nm
- Flammability rating (UL 94): V0
- Valve plug contact material: CuSn
- Valve plug contact surface material: Sn
- Valve plug contact insert material: PA 66
- Material housing valve plug: TPU
- Sealing material: TPU (Seal molded)
- Cable type: PUR halogen-free black
- Cable abbreviation: Li9Y11Y-HF
- UL AWM style: 20549
- Conductor cross section: 3x 0.5 mm²
- AWG signal line: 20
- Conductor structure signal line: 28x 0.15 mm
- Core diameter (signal line): 1.5 mm ±0.05 mm
- Wire colors: black 1, black 2, green/yellow
- Overall twist: 3 wires, twisted
- External sheath color: black-gray RAL 7021
- External cable diameter: 4.5 mm ±0.2 mm
- Smallest bending radius (fixed): 22.5 mm
- Number of bending cycles: 15000000
- Bending radius: 50 mm
- Traversing path: 0.9 m
- Traversing rate: 5 m/s
- Acceleration: 30 m/s²
- Outer sheath material: PUR
- Conductor insulation material: PP
- Conductor material: Bare Cu litz wires
- Conductor resistance: 39 Ω/km (at 20 °C)
- Nominal voltage (cable): ≤ 300 V
- Test voltage (cable): ≥ 1200 V
- Flame resistance: According to DIN VDE 0482
- Halogen-free: in accordance with DIN VDE 0472 part 815
- Other resistance: Largely oil-resistant
- UV resistance: partly UV-resistant in accordance with DIN EN ISO 4892-2-A
- Ambient temperature (operation) - cable (fixed): -40 °C ... 80 °C
- Ambient temperature (operation) - cable (flexible): -20 °C ... 80 °C
- eCl@ss 4.0: 27060306
- eCl@ss 4.1: 27060306
- eCl@ss 5.0: 27061801
- eCl@ss 5.1: 27061801
- eCl@ss 6.0: 27061801
- eCl@ss 7.0: 27061801
- eCl@ss 8.0: 27279218
- ETIM 3.0: EC001855
- ETIM 4.0: EC001855
- ETIM 5.0: EC001855
- UNSPSC 6.01: 31251501
- UNSPSC 7.0901: 31251501
- UNSPSC 11: 31251501
- UNSPSC 12.01: 31251501
- UNSPSC 13.2: 31251501
