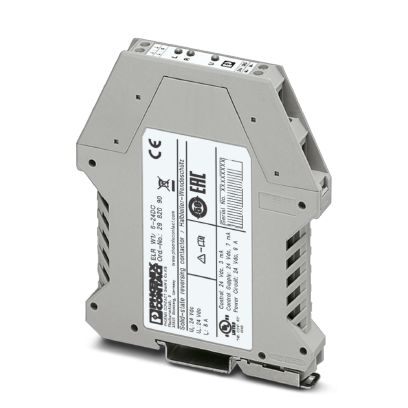

Phoenix Contact 2982090 Reversing Load Relay
This electronic reversing load relay is designed for controlling DC motors. It features an LED display and includes a protective circuit to ensure reliability. The relay operates with an output voltage ranging from 10 to 30 V DC and can handle up to 6 A. It offers a switch-over time of 80 milliseconds for efficient switching between directions. Suitable for industrial automation, it has a compact design with dimensions of 114.5 mm depth, and meets UL, cUL, and EAC approvals for safety and compliance. Ideal for dynamic motor control applications requiring precise reversing capabilities.
Phoenix Contact 2982090 Reversing Load Relay Specifications:
- Input Voltage Range: 10 - 30 V DC
- Output Load Current: 6 A
- Switch-over Time: 80 milliseconds
- Operating Temperature: -20°C to 60°C
- Storage/Transport Temperature: -20°C to 80°C
- Degree of Protection: IP20
- Dimensions: Depth 114.5 mm
- Test Voltage Input/Output: 2.5 KV
- Mounting Position: Vertical (DIN rail)
- Connection Wire Cross Section: 0.14 mm² to 2.5 mm²
- Conductor AWG Range: 26 to 14
- Certifications: UL Listed, cUL Listed, EAC, China RoHS
- Environmental Compliance: REACh SVHC Lead 7439-92-1
Buy the Phoenix Contact ELR W1/ 6-24DC – Reliable Reversing Load Relay for Industrial Applications
Purchase the Phoenix Contact reversing load relay ELR W1/ 6-24DC today—engineered for high reliability and efficient motor control. Equipped with LED display, protective circuits, and a switch-over time of 80 ms, it ensures precise reversing operations. Its robust construction includes a compact dimension of 114.5 mm depth, with versatile connection options supporting 0.14 mm² to 2.5 mm² wire cross-sections and operating voltage of 10-30 V DC. Certified UL, cUL, and EAC, this relay is ideal for demanding industrial automation environments requiring durable, compliant, and high-performance motor control solutions.
Get Phoenix Contact ELR W1/ 6-24DC today—designed for reliable reversing control of DC motors in industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact 2982090?
You can click on the BUY or RFQ button to purchase 2982090 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2982090?
You can download the 2982090 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2982090?
Phoenix Contact
