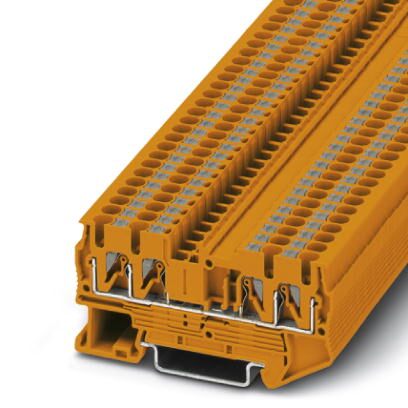

Phoenix Contact 3001373 Feed-through Terminal Block
The PHOENIX CONTACT PT 2,5-QUATTRO OG feed-through terminal block offers a robust and efficient solution for connecting multiple conductors. Its push-in connection simplifies wiring, eliminating the need for tools. The compact design allows for space-saving installation, while the front connection facilitates wiring in confined areas. This terminal block is tested for railway applications and provides an additional test connection for enhanced functionality. It is ideal for use in railway, machine building, plant engineering, and process industries where reliable and efficient power distribution is essential.
Phoenix Contact 3001373 Feed-through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 4
- Potentials: 1
- Nominal cross section: 2.5 mm²
- Color: orange
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Railway industry, Machine building, Plant engineering, Process industry
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.77 W
- Maximum load current: 28 A (with 4 mm² conductor cross section)
- Nominal current IN: 24 A (at a conductor cross section of 2.5 mm²; it must not be exceeded by the total current.)
- Nominal voltage UN: 800 V
- Open side panel: Yes
- Packing unit: 1 STK
- Minimum order quantity: 50 STK
- GTIN: 4046356866200
- Weight per Piece (excluding packing): 10.800 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Connection method: Push-in connection
- Connection in acc. with standard: IEC 60947-7-1
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Min. AWG conductor cross section, flexible: 26
- Max. AWG conductor cross section, flexible: 14
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 0.5 mm²
- Stripping length: 8 mm ... 10 mm
- Internal cylindrical gage: A3
- Connection in acc. with standard (UL): CUL
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- eCl@ss 4.0: 27141121
- eCl@ss 4.1: 27141121
- eCl@ss 5.0: 27141120
- eCl@ss 5.1: 27141100
- eCl@ss 6.0: 27141100
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141120
- eCl@ss 9.0: 27141120
- ETIM 2.0: EC000897
- ETIM 3.0: EC000897
- ETIM 4.0: EC000897
- ETIM 5.0: EC000897
- ETIM 6.0: EC000897
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
