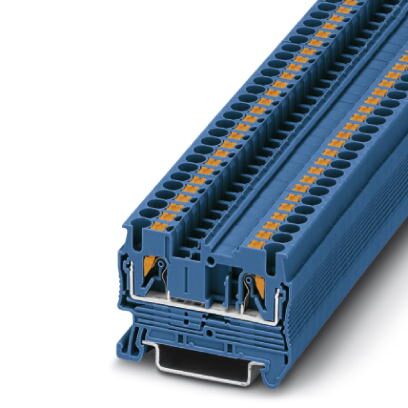

Phoenix Contact 3209523 Terminal Block
This Phoenix Contact feed-through terminal block offers reliable electrical connections with push-in wiring, rated for 20A and 600V. Designed for single-level wiring, it features a compact, space-efficient design in blue, suitable for various industrial applications including railway and process industries. The terminal block supports wire sizes from 26 to 12 AWG, ensuring versatility in connection options. Its robust construction, UL 94V-0 flammability rating, and compliance with IEC 60947-7-1 standards make it ideal for demanding environments, providing secure, easy wiring and testing capabilities.
Phoenix Contact 3209523 Terminal Block Specifications:
- Rated current: 20A
- Rated voltage: 600V
- Maximum load current: 28A with 4 mm² conductor cross section
- Connection method: Push-in connection
- Number of positions: 1
- Width: 5.2 mm
- Height: 35.3 mm
- Length: 48.5 mm
- Color: Blue
- Insulating material: Not specified but UL 94V-0 rated
- Conductor cross section: min. 26 AWG, max. 12 AWG
- Stripping length: 8-10 mm
- Overvoltage category: III
- Pollution degree: 3
- Flammability rating: UL 94V-0
- Standards: IEC 60947-7-1, CSA, UL Recognized
- Approvals: CSA / UL Recognized, VDE, cUL, EAC, CE, others
- Dimensions: Width 5.2 mm, height 35.3 mm, length 48.5 mm
- Nominal current: 20A
- Nominal voltage: 600V
- Maximum load current: 28A for 4 mm² wire
- Connection in accordance with IEC 60947-7-1
Buy the Phoenix Contact Series PT 2,5 BU: Connector Terminal Block 3209523
Purchase the Phoenix Contact Series PT 2,5 BU terminal block online today for reliable, easy-to-install wiring solutions rated for 20A and 600V. Its compact design and push-in connection make it ideal for confined spaces, providing secure and testable connections in industrial, railway, and process applications. With UL 94V-0 flammability rating and compliance with IEC 60947-7-1 standards, this terminal block guarantees safety and durability. Ensure your electrical systems are efficient and compliant by ordering this high-quality terminal block now.
Order your Phoenix Contact Series PT 2,5 BU terminal block today and ensure secure, space-efficient electrical connections in your industrial projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 3209523?
You can click on the BUY or RFQ button to purchase 3209523 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3209523?
You can download the 3209523 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3209523?
Phoenix Contact
