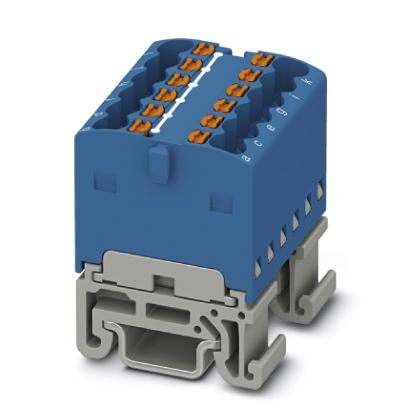

Phoenix Contact 3002922 Distribution block
This is a blue distribution block with internal bridging capability, allowing connection via a conductor shaft. It supports plug-in bridges (see accessories) and is rated for a nominal voltage of 500 V and a nominal current of 17.5 A. The connection method is push-in, accommodating up to 12 connections with cross-sectional ranges from 0.14 mm² to 2.5 mm² (AWG 26 to 14). The width of the distribution block is 24.9 mm, and it is designed for mounting on NS 15 DIN rails.
Phoenix Contact 3002922 Distribution block Specifications:
- Color: Blue
- Mounting type: NS 15 DIN rail
- Number of connections: 12
- Connection method: Push-in
- Rated voltage: 500 V
- Rated current: 17.5 A
- Cross section: 0.14 mm² - 2.5 mm² (AWG 26 - 14)
- Width: 24.9 mm
- Supports internal bridging via conductor shaft
- Suitable for rail vehicles fire protection (DIN EN 45545-2 R24, R26)
- Environmental compliance: China RoHS
- Certifications: CSA / UL Recognized, cUL Recognized, cULus Recognized
Buy the Buy Phoenix Contact Distribution Block Part Number 3002922 Online
Order the Phoenix Contact distribution block 3002922 online today and enjoy fast, secure delivery. This compact, blue distribution block features internal bridging, push-in connection technology, and supports up to 12 connections. With rated voltage of 500 V and current of 17.5 A, it is ideal for efficient wiring in industrial and rail vehicle applications. Designed for NS 15 DIN rails, it provides a space-saving solution with clear terminal marking, ensuring quick installation and maintenance.
Buy Phoenix Contact distribution block 3002922 now and experience reliable connection, space-saving design, and easy DIN rail mounting.
Frequently Asked Questions
Where can I buy Phoenix Contact 3002922?
You can click on the BUY or RFQ button to purchase 3002922 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3002922?
You can download the 3002922 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3002922?
Phoenix Contact
