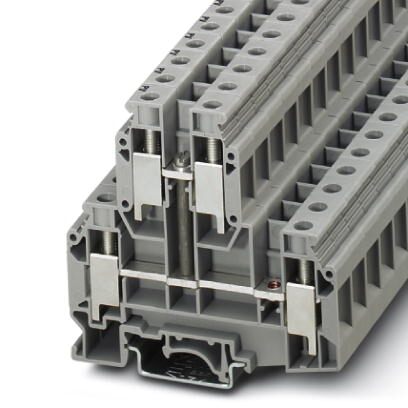

Phoenix Contact 3003567 Double-Level Terminal Block
This double-level terminal block with equipotential bonding offers a compact design width of only 10.2 mm, suitable for wire cross sections ranging from 0.5 mm² to 16 mm² (AWG 20 to 6). It features screw terminal connections, high load current capacity of 70 A, and a nominal voltage of 500 V. Designed for reliable connections, it mounts on NS 35/7.5, NS 35/15, or NS 32 profiles, making it ideal for industrial electrical distribution and automation systems requiring secure wire connections and efficient space utilization.
Phoenix Contact 3003567 Double-Level Terminal Block Specifications:
- Design width of 10.2 mm
- Wire Cross Section: 0.5 mm² - 16 mm², AWG 20 - 6
- Maximum load current: 70 A
- Nominal Voltage: 500 V
- Connection Type: Screw connection
- Mounting: NS 35/7.5, NS 35/15, NS 32 profiles
- Color: Gray
- Standards: IEC 60947-7-1
- Approvals: EAC
- Weight: 46.92 g
- Suitable for stranded wires with ferrules
- Connection in compliance with industry standards
- Designed for electrical distribution and automation applications
Buy the Buy Phoenix Contact Double-Level Terminal Block Part Number 3003567 Online
Order the Phoenix Contact double-level terminal block part number 3003567 online today for secure and space-efficient wiring in industrial electrical systems. Featuring screw terminal connections, it supports wire cross sections from 0.5 mm² to 16 mm², with a high load current of 70 A and voltage of 500 V. Its compact design width of 10.2 mm fits seamlessly into automation panels, offering reliable performance, secure connections, and easy mounting on NS 35/7.5, NS 35/15, or NS 32 profiles—ideal for professional electrical installations.
Get Phoenix Contact 3003567 today—designed for reliable screw connection and high current capacity in industrial automation.
