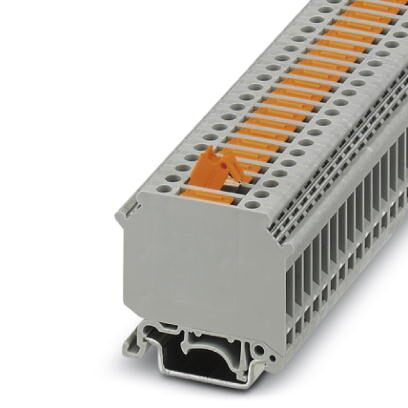

Phoenix Contact 3004430 Disconnect Terminal Block
This knife disconnect terminal block is designed for reliable electrical connections with a nominal voltage of 500 V and current capacity of 16 A. It features screw-type connection terminals accommodating wire cross sections from 0.2 mm² to 6 mm² (AWG 24 to 10), ensuring versatile wiring options. The compact length of 51 mm and width of 6.2 mm make it ideal for space-efficient installations on standard mounting rails NS 35/7.5, NS 35/15, and NS 32. Its rugged gray body ensures durability in industrial environments, meeting IEC standards for safety and performance.
Phoenix Contact 3004430 Disconnect Terminal Block Specifications:
- Nominal voltage: 500 V
- Nominal current: 16 A
- Connection method: Screw connection
- Wire range: 0.2 mm² - 6 mm² (AWG 24 - 10)
- Length: 51 mm
- Width: 6.2 mm
- Color: Gray
- Mounting: NS 35/7.5, NS 35/15, NS 32
- Standards: IEC 60947-7-1
- Fire protection: DIN EN 45545-2 R22, R23, R24, R26
- UL Recognized, cUL, EAC, CSA compliant
- Wire ferrule compatibility: 0.25 mm² to 2.5 mm²
Buy the Phoenix Contact Series UK 5-MTK: 3004430
Secure your wiring with the space-saving Phoenix Contact disconnect terminal block. Rated for 500 V and 16 A, it features screw terminals compatible with wire sizes from 0.2 mm² to 6 mm². Designed for easy installation on standard DIN rails NS 35/7.5, NS 35/15, and NS 32, its durable gray body ensures long-lasting performance. Perfect for industrial automation and control panels, this terminal block complies with IEC standards and is UL, cUL, and CSA recognized, making it a reliable choice for various electrical applications.
Order your Phoenix Contact Series UK 5-MTK 3004430 today and give your projects the dependable quality they deserve with space-efficient wiring solutions.
