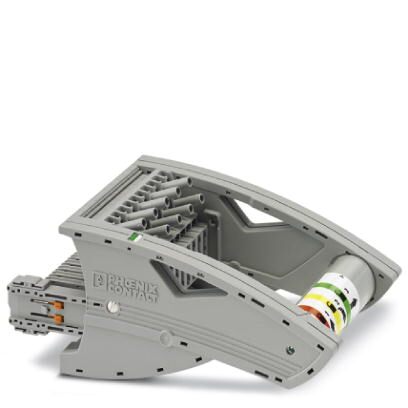

Phoenix Contact 3069955 Test Plug 10 Position
The Phoenix Contact FTPR-3/10S test plug is designed for safe and efficient measurement of terminal blocks. Featuring a patented twist grip, it provides guided operation and a robust switch contact for reliable signal transmission. Its modular design and standardized CLIPLINE accessories offer cost-effectiveness, while the offset test socket arrangement saves space. The plug is built with high-quality materials and incorporates features like an automatically generated transformer short circuit and shock-proof design for maximum safety during measurement. It is suitable for a wide range of industrial applications requiring reliable and safe testing procedures.
Phoenix Contact 3069955 Test Plug 10 Position Specifications:
- Number of positions: 10
- Number of levels: 1
- Number of connections: 20
- Potentials: 10
- Nominal cross section: 6 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 5 kV
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 1.31 W
- Maximum load current: 20 A
- Nominal current IN: 20 A
- Nominal voltage UN: 400 V AC/DC
- Open side panel: No
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Flame test method (DIN EN 60695-11-10): V0
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 112.3 mm
- Length: 86 mm
- Pitch: 8.2 mm
- Conductor cross section flexible min.: 0.5 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Min. AWG conductor cross section, flexible: 20
- Max. AWG conductor cross section, flexible: 14
- Mounting type: Insertion in base strip
- Min. tightening torque of the test socket screw: 0.5 Nm
- Max. tightening torque of the test socket screw: 0.6 Nm
