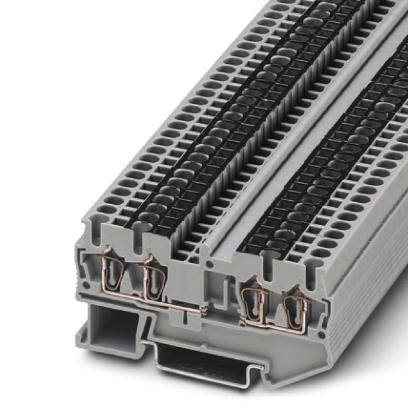

Phoenix Contact 3031636 Feed-through terminal block
The feed-through terminal block features a spring-cage connection method, supporting four conductors with a cross section of 0.08 mm² to 4 mm² (AWG 28-12). It has a maximum voltage rating of 800 V and a nominal current of 22 A, ensuring reliable power distribution in industrial automation. The terminal's compact width of 5.2 mm and gray color make it suitable for DIN rail mounting (NS 35/7.5 and NS 35/15). Designed for easy wiring and maintenance, it complies with IEC 60947-7-1 standards and is recognized by UL, VDE, and other safety agencies. Its sturdy construction guarantees mechanical stability and long-lasting performance, ideal for diverse electrical panel applications.
Phoenix Contact 3031636 Feed-through terminal block Specifications:
- Connection method: Spring-cage connection
- Number of connections: 4
- Wire cross section: 0.08 mm² to 4 mm² (AWG 28-12)
- Maximum voltage: 800 V
- Nominal current: 22 A
- Width: 5.2 mm
- Color: Gray
- Mounting types: NS 35/7.5, NS 35/15
- Standards: IEC 60947-7-1 compliant
- Safety certifications: UL Recognized, VDE, cUL, IECEE CB Scheme
- Mechanical stability: Test passed for conductor connection
- Application: Industrial wiring, automation control panels
- Insulation: Suitable for DIN rail mounting, robust construction
Buy the Phoenix Contact Series ST 2,5-QUATTRO-U: 3031636
Order the Phoenix Contact feed-through terminal block online today and enjoy reliable, safe, and efficient wiring for your control panels. Designed for easy installation with spring-cage connection technology, it supports multiple conductors with wire ranges from 0.08 mm² to 4 mm² (AWG 28-12). Its compact width of 5.2 mm makes it suitable for DIN rail mounting, ensuring neat and organized panels. Certified for safety and durability, this terminal block guarantees dependable electrical connections for various industrial applications. Purchase now for quick delivery and quality assurance.
Get Phoenix Contact ST 2,5-QUATTRO-U today—built for reliable power connections and durable performance in industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact 3031636?
You can click on the BUY or RFQ button to purchase 3031636 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3031636?
You can download the 3031636 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3031636?
Phoenix Contact
