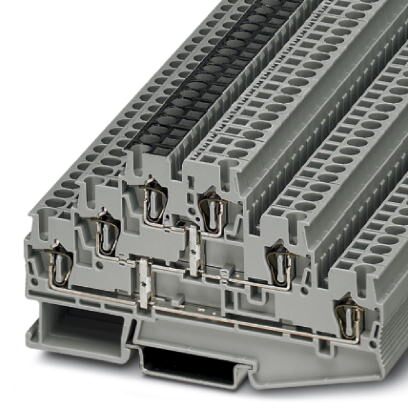

Phoenix Contact 3036068 Multi-level terminal block
This Phoenix Contact multi-level terminal block is designed for industrial wiring applications, offering a 3-level configuration with spring-cage connection method. Suitable for wire sizes from 28 to 12 AWG, it supports a maximum current of 20 amperes and voltage up to 600 volts. The terminal block is rated for a temperature index of 125°C, with a width of 5.2 mm and a gray color for easy identification. It passes mechanical stability and thermal tests, making it a reliable component for complex wiring systems in industrial environments.
Phoenix Contact 3036068 Multi-level terminal block Specifications:
- Connection method: Spring-cage connection
- Number of levels: 3
- Wire size: 28-12 AWG (0.2-2.5 mm? or Kcmil)
- Current rating: 20 A
- Voltage rating: 600 V
- Temperature index: 125°C
- Material: Insulation up to UL 746 B standard
- Dimensions: Width 5.2 mm
- Color: Gray
- Mounting type: NS 35/7.5, NS 35/15
- Thermal test: Passed
- Mechanical stability: Passed
- Environmental compliance: CSA, UL Recognized, VDE, cUL recognized, IECEE CB, EAC
- Approvals: CSA, UL, VDE, cULus, EAC
- Insulation material: Rated for 130°C
- Rated for conductor cross section: 0.08 mm? - 4 mm?
- Standards compliance: UL, CSA, IEC
- Certifications: Recognized under multiple safety standards
Buy the Phoenix Contact 3036068 – Reliable Multi-level Terminal Block for Industrial Applications
Enhance your wiring system with this high-quality Phoenix Contact multi-level terminal block featuring spring-cage connections, rated for 20 amperes and 600 volts. Its 3-level design allows for organized, reliable connections suitable for wire sizes from #28 to #12 AWG. Waterproof and thermally stable, it ensures safe operation in demanding industrial environments. Easier installation and secure connection make it ideal for complex electrical systems, providing durability, flexibility, and compliance with safety standards for long-term performance in industrial applications.
Order your Phoenix Contact Series 3036068 terminal block today and give your industrial wiring projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Phoenix Contact 3036068?
You can click on the BUY or RFQ button to purchase 3036068 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3036068?
You can download the 3036068 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3036068?
Phoenix Contact
