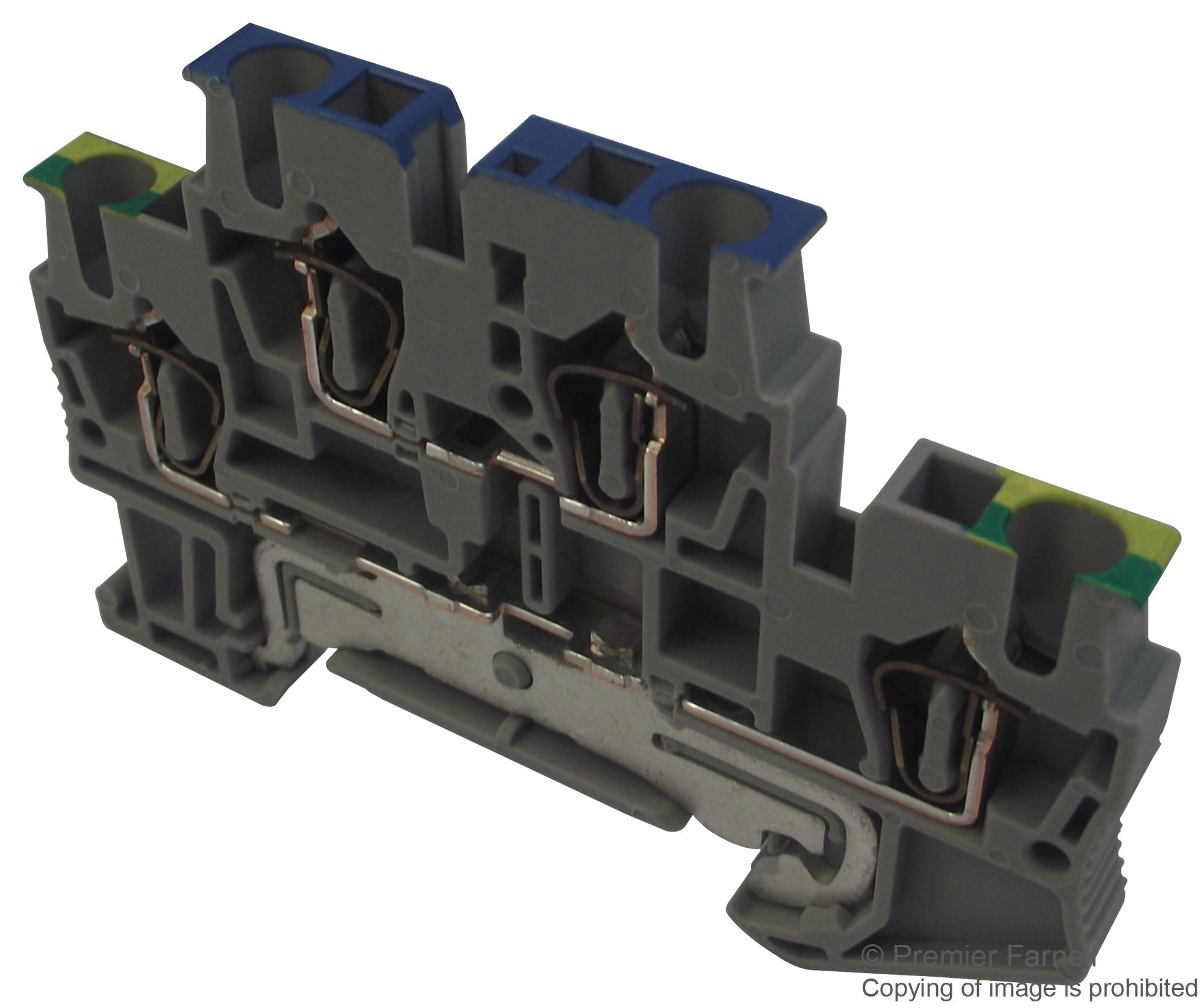

Phoenix Contact 3036327 Grounding Terminal Block
This protective conductor double-level terminal block offers reliable connection with spring-cage technology, suitable for conductor cross sections from 0.08 mm² to 4 mm² (AWG 28 to 12). It features color-coded potential distribution for clear wiring and mounting compatibility with NS 35/7.5 or NS 35/15 DIN rails. Compliant with UL, CSA, VDE, and cUL recognized standards, it supports a rated current of 32 A and withstands temperature variations according to DIN EN 60216-1. Its durable design ensures safe and organized grounding in industrial electrical installations.
Phoenix Contact 3036327 Grounding Terminal Block Specifications:
- Cross Section Range: 0.08 mm² - 4 mm²
- AWG Range: 28 - 12
- Current Rating: 32 A
- Connection Type: Spring-cage connection
- Width: 5.2 mm
- Color: Gray
- Mounting: NS 35/7.5, NS 35/15 DIN rail
- Rated Voltage: 300 V
- Temperature Index: DIN EN 60216-1
- Certifications: UL Recognized, CSA, VDE, cUL Recognized
- Applicable Standards: eCl@ss, ETIM, UNSPSC classifications
- Test Frequency: 5 Hz to 250 Hz
- Mechanical Stability: Passed conductor test for 5 x conductor
- Material: Suitable for industrial grounding and potential distribution
- Threaded or barbed terminals for reliable connection
- Max conductor sleeve size: 0.5 mm² with plastic sleeve
Buy the Phoenix Contact 3036327 – Reliable Grounding Terminal Block for Industrial Applications
Purchase the Phoenix Contact 3036327 grounding terminal block online today for your electrical grounding and potential distribution needs. Featuring spring-cage connections, it guarantees secure, reliable connections for conductor ranges from 0.08 mm² to 4 mm² (AWG 28-12). With a compact width of 5.2 mm, this gray terminal block is compatible with NS 35/7.5 or NS 35/15 DIN rails, and supports a rated current of 32 A. Recognized by UL, CSA, and VDE standards, it is ideal for industrial electrical and grounding applications, offering durability and safety.
Order your Phoenix Contact Series 3036327 grounding terminal block today and ensure safe, organized, and reliable electrical grounding in your industrial projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 3036327?
You can click on the BUY or RFQ button to purchase 3036327 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3036327?
You can download the 3036327 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3036327?
Phoenix Contact
