Phoenix Contact SACCBPMM8M12SMD Industrial power connector

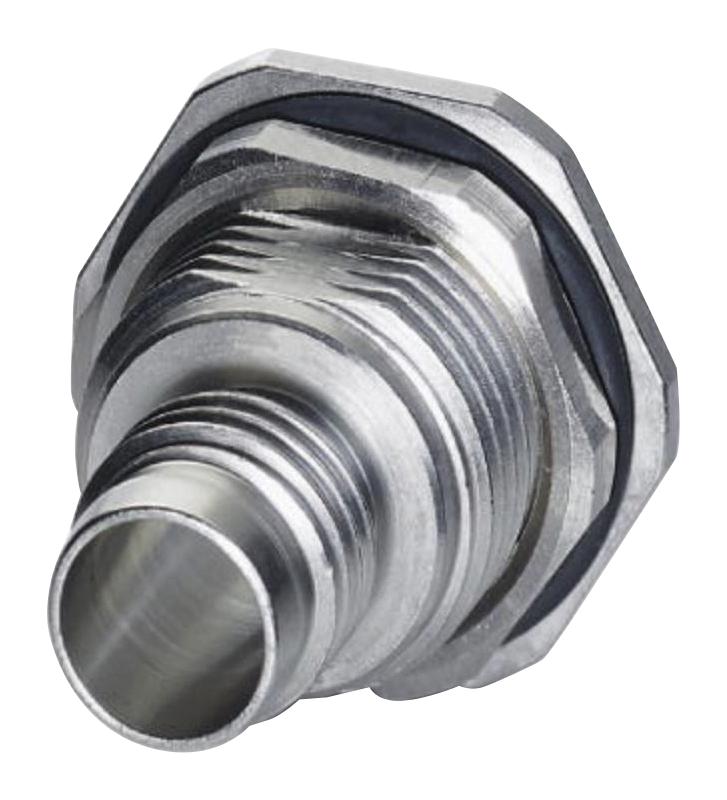

The housing screw connection SACC-BP-M-M8/M12 SMD is a compact, rear-mount connector designed for efficient PCB assembly and easy device integration. Made from brass with nickel plating and sealed with FKM material, it offers reliable environmental protection with a protection class of IP67 when properly plugged and locked. This connector is ideal for use in industrial environments, providing secure screw connections for M8 and M12 configurations, reducing mounting costs and simplifying installation. Its durable construction ensures long-term performance in various ambient conditions.
Phoenix Contact SACCBPMM8M12SMD Industrial power connector Specifications:
- Material: Brass, nickel-plated
- Sealing Material: FKM
- Protection Class: IP67 when properly plugged and locked
- Ambient Conditions: Suitable for industrial environments
- Dimensions: 16.75 mm length, 1.25 mm diameter, 2 mm mounting hole
- Approvals: EAC FAL B.01742
- Environmental Compliance: China RoHS, 50-year environmentally friendly use period
- Weight per Piece: 9.2 g
- Housing Type: Screw connection, rear mounting
- Applicable for M8 and M12 sensor/actuator interfaces
- Designed for SMT soldering on PCB
- Custom tariff number: 85366990
Buy the Phoenix Contact Series SACC-BP-M-M8/M12 SMD: 1412505
Purchase the Phoenix Contact Series SACC-BP-M-M8/M12 SMD online now to streamline your industrial device assembly with this robust, IP67-rated screw connection. Made of durable nickel-plated brass, it features sealed contact points using FKM material to withstand harsh environmental conditions. Its rear mounting design simplifies quick PCB integration, reducing installation time and costs. Ideal for sensor and actuator connections in automation systems, this connector ensures long-term reliability, excellent environmental protection, and easy, secure screw fastening, making it the perfect choice for demanding industrial applications.
Order your Phoenix Contact Series SACC-BP-M-M8/M12 SMD today and ensure secure, reliable connections for your industrial sensor and actuator applications.
