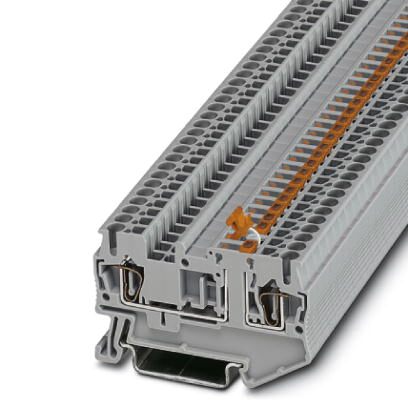

Phoenix Contact 3036343 Knife Disconnect Terminal Block
This is a knife disconnect terminal block rated for a nominal voltage of 400 V and a current of 20 A. It features a spring-cage connection for secure wiring, compatible with wire cross-sections from 0.08 mm² to 4 mm² (AWG 28 to 12). The terminal block measures 60.5 mm in length, 5.2 mm in width, and is gray in color. Designed for installation on NS 35/7.5 and NS 35/15 DIN rails, it supports multi-conductor connections and testing with 2.3 mm test plugs, suitable for industrial automation and control applications.
Phoenix Contact 3036343 Knife Disconnect Terminal Block Specifications:
- Rated Voltage: 400 V
- Current Capacity: 20 A
- Connection Type: Spring-cage connection
- Conductor Cross Section: 0.08 mm² to 4 mm² (AWG 28 to 12)
- Dimensions: Length 60.5 mm, Width 5.2 mm
- Color: Gray
- Mounting: NS 35/7.5, NS 35/15 DIN rails
- Test Connection: Parallel to disconnect point for 2.3 mm test plugs
- Suitable for multi-conductor wiring and railway applications
- Mechanical stability tested for conductor connection
Buy the Buy Phoenix Contact Knife Disconnect Terminal Block Part Number 3036343 Online
Experience reliable and secure wiring with this top-quality knife disconnect terminal block. Rated for 400 V and 20 A, it features a spring-cage connection for fast, safe installation. Its compatibility with wire sizes from 0.08 mm² to 4 mm² makes it versatile for various industrial automation and control systems. Mountable on standard DIN rails, the device supports multi-conductor connections and testing with 2.3 mm plugs, ensuring flexible and efficient electrical connections in demanding environments.
Get Phoenix Contact 3036343 today—built for secure wiring, multi-conductor connections, and industry-grade reliability.
Frequently Asked Questions
Where can I buy Phoenix Contact 3036343?
You can click on the BUY or RFQ button to purchase 3036343 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3036343?
You can download the 3036343 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3036343?
Phoenix Contact
