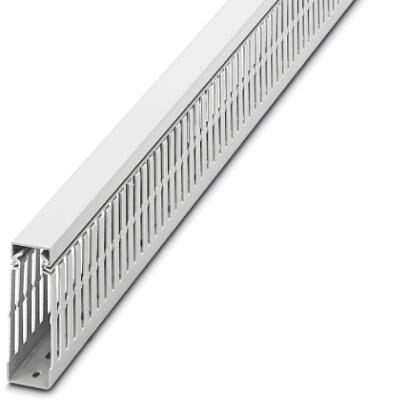

Phoenix Contact 3240619 Cable Duct
The Phoenix Contact CD 25X80 WH cable duct provides a robust and efficient solution for cable management in control cabinets. Constructed from PVC, this cable duct features an upper part and mounting base, offering a secure and organized pathway for conductors. Its leverage design and special cutting geometry, combined with the CUTFOX-CD cable duct cutter, enable easy, burr-free cutting with minimal effort. The predetermined breaking point allows for tool-free removal of bars, while the wide, diagonal heads of the cable duct bars ensure a secure fit for the cover. Additionally, wire retaining clips can be snapped onto the bars for added security, and plastic body-bound rivets facilitate easy fixing using the rivet setting tool. This cable duct is suitable for a wide range of industrial applications where organized and protected cable routing is essential.
Phoenix Contact 3240619 Cable Duct Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- GTIN: 4046356629157
- Weight per Piece (excluding packing): 33.330 g
- Custom tariff number: 39259020
- Country of origin: Germany
- Length (b): 2000 mm
- Width (a): 25 mm
- Height (c): 80 mm
- Diameter: 25.00 mm
- Ambient temperature (operation): -5 °C ... 60 °C
- Color: white
- Components: Lead-free
- Flammability rating according to UL 94: V0
- Material: PVC
- Nominal cross section: 1202 mm²
- Halogen-free: no
- Connection in acc. with standard: CSA
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- eCl@ss 5.1: 27140600
- eCl@ss 6.0: 27400700
- eCl@ss 7.0: 27400703
- eCl@ss 8.0: 27400703
- eCl@ss 9.0: 27400703
- ETIM 4.0: EC000012
- ETIM 5.0: EC000012
- ETIM 6.0: EC000012
- ETIM 7.0: EC000012
- UNSPSC 6.01: 30101815
- UNSPSC 7.0901: 30101815
- UNSPSC 11: 30101815
- UNSPSC 12.01: 30101815
- UNSPSC 13.2: 39131712
- Approval details CSA: 248269
- Approval details UL Recognized: FILE E 328576
- Approval details VDE Zeichengenehmigung: 40027969
