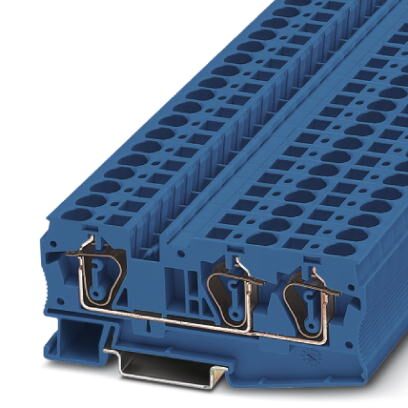

Phoenix Contact 3036479 Feed-through terminal block
This feed-through terminal block features a nominal voltage of 1000 V and a nominal current of 41 A. It employs a spring-cage connection method, providing three connection points. Compatible wire cross sections range from 0.2 mm² to 10 mm² (AWG 24 to 8). The terminal measures 8.2 mm in width, is blue in color, and designed for mounting on NS 35/7.5 and NS 35/15 DIN rails, making it ideal for various industrial and control applications requiring reliable, space-saving multi-conductor connections.
Phoenix Contact 3036479 Feed-through terminal block Specifications:
- Nominal Voltage: 1000 V
- Nominal Current: 41 A
- Connection Method: Spring-cage
- Number of Connection Points: 3
- Wire Cross Section Range: 0.2 mm² to 10 mm² (AWG 24 to 8)
- Width: 8.2 mm
- Color: Blue
- Mounting Types: NS 35/7.5, NS 35/15 DIN rails
- Standards and Certifications: CSA Recognized, UL Recognized, VDE, cULus Recognized, IECEx / ATEX / EAC Ex
- Maximum conductor cross section: 10 mm²
- Mechanical stability test: Passed 5x conductor pull test
- Certification includes: UL, CSA, VDE, CUL, GL, EAC
Buy the Buy Phoenix Contact Feed-through Terminal Block Part Number 3036479 Online
Enhance your industrial wiring with this high-quality feed-through terminal block featuring a 1000 V voltage rating, 41 A current capacity, and spring-cage connection for quick, secure terminations. Designed for mounting on NS 35/7.5 and NS 35/15 DIN rails, it covers wire sizes from 0.2 mm² to 10 mm² (AWG 24 to 8). Its compact width of 8.2 mm and durable construction ensure reliable performance in demanding environments. Purchase online today to optimize your electrical installations with proven Phoenix Contact technology.
Order your Phoenix Contact ST 6-TWIN BU terminal block today and ensure reliable, space-efficient wiring in your industrial control systems.
Frequently Asked Questions
Where can I buy Phoenix Contact 3036479?
You can click on the BUY or RFQ button to purchase 3036479 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3036479?
You can download the 3036479 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3036479?
Phoenix Contact
