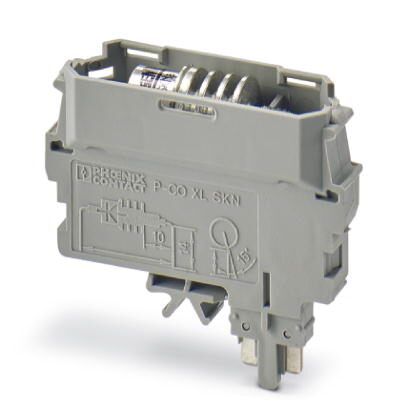

Phoenix Contact 3036798 Component connector
This component connector is specifically designed for holding SKN 2.5 diodes, with a nominal current of 10 A. It features solderless spring-cage connections and internal contact areas, making it suitable for high power dissipation components. The connector measures 41.2 mm in length, 12.3 mm in width, and 37.5 mm in height, with a single position and gray color. It is compliant with fire protection standards for rail vehicles (DIN EN 45545-2) R26 and recognized for railway applications, ensuring safety and reliability in demanding environments.
Phoenix Contact 3036798 Component connector Specifications:
- Dimensions: Length 41.2 mm, Width 12.3 mm, Height 37.5 mm
- Nominal current: 10 A
- Connection method: Plug connection
- Fire protection standards: DIN EN 45545-2 R26, R22, R23, R24 HL 1-HL3
- Environmental compliance: China RoHS unlimited EFUP
- Color: Gray
- Number of positions: 1
- Wire range: 0.3 mm to 1.2 mm
- Approvals: CSA, UL Recognized, cUL Recognized
- Nominal voltage: 300 V
- Compatibility: Suitable for high power dissipation components, railway applications
- mounting: Snap-in marker strips available
Buy the Buy Phoenix Contact Component Connector for SKN 2.5 Diodes Part Number 3036798 Online
Purchase the Phoenix Contact component connector designed for SKN 2.5 diodes, rated at 10 A. It features solderless spring-cage connections, high power dissipation capability, and is compliant with railway fire safety standards. Measuring 41.2 mm in length, 12.3 mm in width, and 37.5 mm in height, it supports wire diameters from 0.3 to 1.2 mm. Its gray color and one-position design make it ideal for demanding industrial and rail environment applications. Order online for fast delivery and reliable performance.
Buy Phoenix Contact 3036798 now and experience unmatched reliability and high power dissipation support in railway applications.
