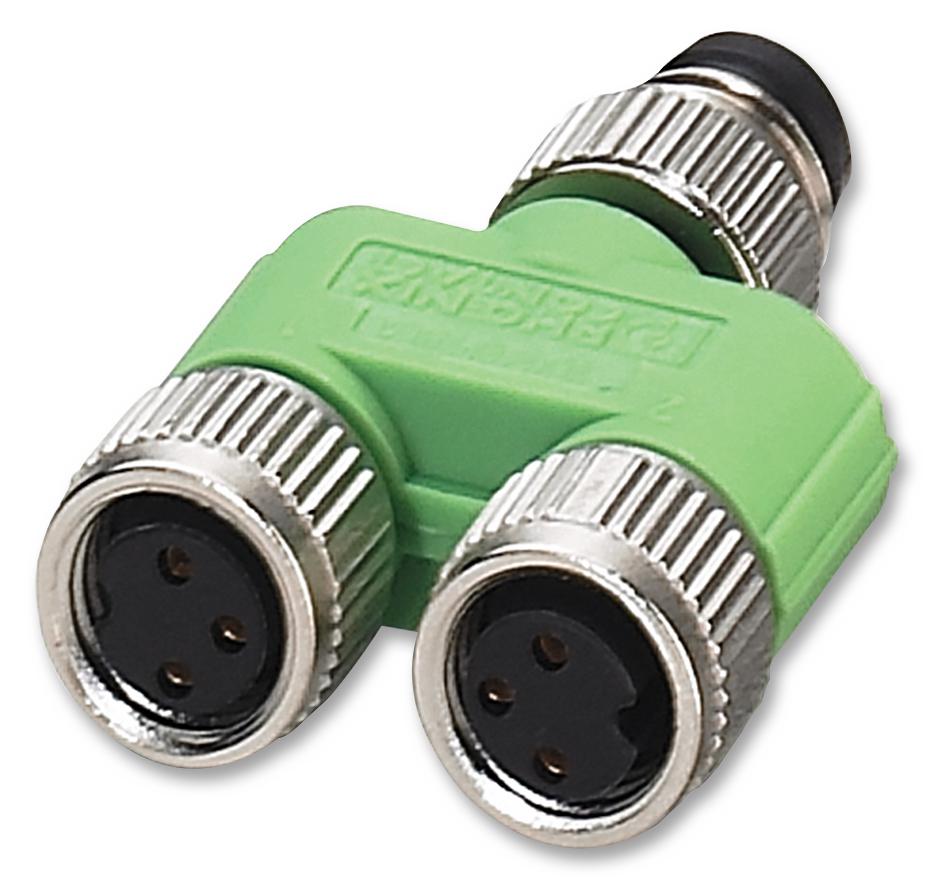

Phoenix Contact SAC3PM8Y2XM8FSVP M8 Y Distributor
The Y distributor SAC-3P-M 8Y/2XM 8FS VP is an industrial-grade M8 connector designed for reliable signal and power distribution in automation and control systems. It features a 3-position female connector with IP67 protection, suitable for harsh environments. Made from durable materials including CuZn contact surfaces with Ni/Au coating and TPU GF contact carriers, this connector is rated for 4A at 60V, with over 100 insertion cycles and a temperature range of -25°C to 90°C. It complies with IEC 61076-2-104 standards, ensuring safety and performance in industrial settings.
Phoenix Contact SAC3PM8Y2XM8FSVP M8 Y Distributor Specifications:
- Dimensions: center distance 12mm
- Ambient temperature (operation): -25°C to 90°C
- Degree of protection: IP67
- Rated current: 4A at 40°C
- Rated voltage: 60V
- Number of positions: 3
- Insulation resistance: 210GΩ
- Material of contact: CuZn, Ni/Au surface
- Material of grip body: TPU GF
- Flammability rating: UL 94 HB
- Contact material: CuZn
- Sealing material: NBR
- Insertion/withdrawal cycles: > 100
- Torque: 0.2 Nm (M8 connectors)
- Standards: IEC 61076-2-104
- Environmental compliance: China RoHS
- Approvals: UL Listed, EAC
Buy the Phoenix Contact Series SAC-3P-M Y Distributor: SAC3PM8Y2XM8FSVP
Order the Phoenix Contact M8 Y distributor SAC-3P-M 8Y/2XM 8FS VP online today and ensure dependable signal and power distribution in your automation setup. This IP67-rated industrial connector is designed for harsh environments with a durable construction that withstands extreme temperatures from -25°C to 90°C. Its compact size and compliance with IEC 61076-2-104 standards make it suitable for various industrial and control applications. Enjoy fast delivery, easy installation, and the peace of mind that comes with a UL listed and EAC approved connector designed for long-lasting performance.
Get Phoenix Contact SAC-3P-M 8Y/2XM 8FS VP today—built for reliability in industrial automation and control applications.
