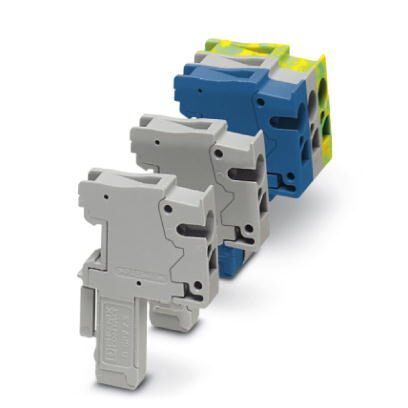

Phoenix Contact 3041082 Single-Position Industrial Connector
The component is a single-position plug with a spring-cage connection method, suitable for wire cross-sections ranging from 0.08 mm² to 4 mm² (AWG 28 to 12). It supports a nominal current of 24 A and a nominal voltage of 500 V. The width of the connector is 5.2 mm, and it is available in gray color. Designed for ease of assembly, it can be snapped directly onto cables and is tested for railway applications, ensuring reliability in demanding environments. Ideal for industrial and control system wiring.
Phoenix Contact 3041082 Single-Position Industrial Connector Specifications:
- Nominal voltage: 500 V
- Nominal current: 24 A
- Connection method: Spring-cage
- Number of connections: 1
- Number of positions: 1
- Wire cross section: 0.08 mm² - 4 mm²
- Wire gauge: AWG 28 - 12
- Width: 5.2 mm
- Height: 34 mm
- Color: Gray
- Supported applications: Railway, industrial wiring
- Tested for railway applications
- Construction: Single-position plug with housing and engagement pin
- Assembly: Snap-on on site
- Standards: UL Recognized, cUL Recognized, VDE approved
- Environmental compliance: China RoHS
Buy the Phoenix Contact Series Connector: SPV 2,5/ 1-R 3041082
Order the Phoenix Contact SPV 2,5/ 1-R connector online today and enhance your wiring solutions with a reliable, easy-to-assemble plug. This versatile connector supports wire cross sections from 0.08 mm² to 4 mm² (AWG 28 to 12) and handles currents up to 24 A at 500 V. Its snap-on design allows quick installation directly on site, making it ideal for control panels, railway applications, and industrial automation. Trust this tested and certified product for secure, durable connections in demanding environments.
Buy Phoenix Contact SPV 2,5/ 1-R 3041082 now and experience unmatched reliability and performance in industrial wiring and control systems.
