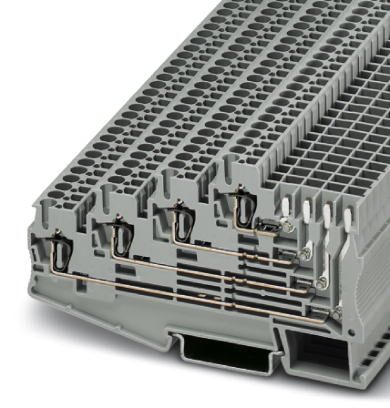

Phoenix Contact 3041985 Multi-Level Terminal Block
The PHOENIX CONTACT ST 2,5-4L/1P multi-level terminal block offers a space-saving solution for connecting multiple circuits in a compact area. Its four feed-through levels allow for efficient organization and labeling at each terminal point. The spring-cage connection ensures reliable and easy termination of conductors, while the robust PA insulating material provides excellent electrical insulation and durability. This terminal block is suitable for a wide range of industrial applications, including control cabinets, power distribution systems, and automation equipment, where space is limited and reliable connections are essential.
Phoenix Contact 3041985 Multi-Level Terminal Block Specifications:
- Number of levels: 4
- Number of connections: 5
- Nominal cross section: 2.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 4 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.77 W
- Connection in acc. with standard: IEC 61984
- Nominal current IN: 10 A
- Maximum load current: 10 A
- Nominal voltage UN: 250 V
- Open side panel: Yes
- Relative insulation material temperature index (Elec.; UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1): 130 °C
- Static insulating material application in cold: -60 °C
- Conductor cross section solid min.: 0.08 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section flexible min.: 0.08 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section AWG min.: 28
- Conductor cross section AWG max.: 12
- Stripping length: 8 mm ... 10 mm
- Packing unit: 1 STK
- GTIN: 4017918975319
- Weight per Piece (excluding packing): 21.120 g
- Custom tariff number: 85369010
- Country of origin: China
