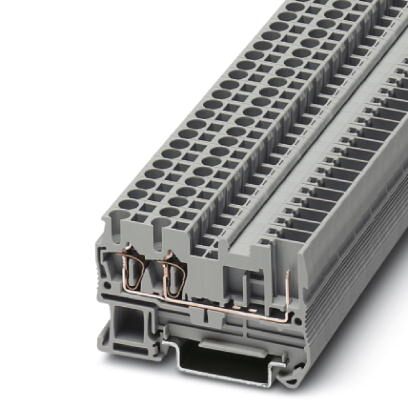

Phoenix Contact 3042117 Feed-through terminal block
The feed-through terminal block offers a reliable connection solution with a current capacity of 24 A and a voltage rating of 500 V. Engineered with a spring-cage and plug-in connection system, it supports wire cross-sections from 0.08 mm² to 4 mm² (AWG 28 to 12), ensuring versatile compatibility for various industrial wiring needs. Its compact 5.2 mm width makes it suitable for space-constrained panels, and it is designed for easy mounting on NS 35/7.5 and NS 35/15 DIN rails. Tested for railway applications, this terminal guarantees high durability and safety in demanding environments.
Phoenix Contact 3042117 Feed-through terminal block Specifications:
- Current Capacity: 24 A at 4 mm² conductor cross section
- Voltage Rating: 500 V
- Nominal Voltage: 500 V
- Connection Method: Spring-cage/plug-in
- Number of Positions: 1
- Number of Connections: 3
- Wire Cross-Section Range: 0.08 mm² to 4 mm² (AWG 28 to 12)
- Mounting Type: NS 35/7.5, NS 35/15 DIN rails
- Width: 5.2 mm
- Color: Gray
- Temperature Index of Insulation Material: 125°C
- Tested for railway applications
- Certifications: UL Recognized, cUL Recognized, VDE compliant, IEC, and other approvals
Buy the Phoenix Contact 3042117 – Reliable Feed-through Terminal Block for Industrial Applications
Enhance your industrial wiring with this high-quality feed-through terminal block designed for versatility and durability. Featuring a spring-cage and plug-in connection, it supports wire cross-sections from 0.08 mm² to 4 mm² (AWG 28 to 12), ensuring a secure and reliable connection. With a narrow width of 5.2 mm, it is perfect for space-constrained panels. Rated for 24 A and 500 V, this terminal is certified for railway and industrial applications, offering maximum safety and compliance for demanding environments.
Order your Phoenix Contact Series3042117 feed-through terminal block today and give your projects the dependable quality they deserve for safe and efficient wiring.
Frequently Asked Questions
Where can I buy Phoenix Contact 3042117?
You can click on the BUY or RFQ button to purchase 3042117 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3042117?
You can download the 3042117 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3042117?
Phoenix Contact
