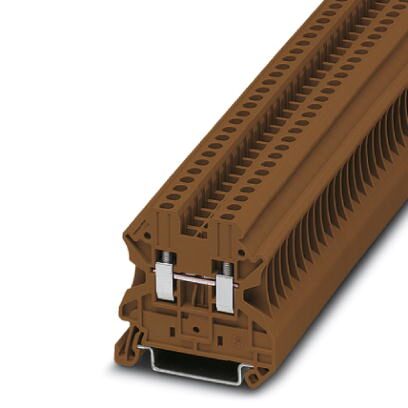

Phoenix Contact 3044077 UT 2.5 Brown Terminal Block

Phoenix Contact 3044077 UT 2.5 Brown Terminal Block Specifications:

• Number of levels: 1
• Number of connections: 2
• Potentials: 1
• Nominal cross section: 2.5 mm²
• Color: brown
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Area of application: Railway industry, Machine building, Plant engineering, Process industry
• Rated surge voltage: 8 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Maximum power dissipation for nominal condition: 0.77 W
• Designation: Level 1 above 1 below 1
• Maximum load current: 32 A (with 4 mm² conductor cross section)
• Nominal current IN: 24 A
• Nominal voltage UN: 1000 V
• Open side panel: Yes
• Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
• Back of the hand protection: guaranteed
• Finger protection: guaranteed
• Result of surge voltage test: Test passed
• Surge voltage test setpoint: 9.8 kV
• Result of power-frequency withstand voltage test: Test passed
• Power frequency withstand voltage setpoint: 2.2 kV
• Result of the test for mechanical stability of terminal points: Test passed
• Result of bending test: Test passed
• Bending test rotation speed: 10 rpm
• Bending test turns: 135
• Bending test conductor cross section/weight: 0.14 mm² / 0.2 kg, 2.5 mm² / 0.7 kg, 4 mm² / 0.9 kg
• Tensile test result: Test passed
• Conductor cross section tensile test: 4 mm²
• Tractive force setpoint: 60 N
• Result of tight fit on support: Test passed
• Tight fit on carrier: NS 35
• Setpoint: 1 N
• Result of voltage-drop test: Test passed
• Requirements, voltage drop: ≤ 3.2 mV
• Result of temperature-rise test: Test passed
• Short circuit stability result: Test passed
• Conductor cross section short circuit testing: 4 mm²
• Short-time current: 0.48 kA
• Result of thermal test: Test passed
• Proof of thermal characteristics (needle flame) effective duration: 30 s
• Oscillation, broadband noise test result: Test passed
• Test specification, oscillation, broadband noise: DIN EN 50155 (VDE 0115-200):2008-03
• Test spectrum: Service life test category 1, class B, body mounted
• Test frequency: f1= 5 Hz to f2= 150 Hz
• ASD level: 1.857 (m/s²)/2/Hz
• Acceleration: 5g
• Test duration per axis: 5 h
• Test directions: X-, Y- and Z-axis (pos. and neg.)
• Shock test result: Test passed
• Test specification, shock test: DIN EN 50155 (VDE 0115-200):2008-03
• Shock form: Half-sine
• Shock duration: 30 ms
• Number of shocks per direction: 3
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125 °C
• Static insulating material application in cold: -60 °C
• Width: 5.2 mm
• End cover width: 2.2 mm
• Length: 47.7 mm
• Height NS 35/7,5: 47.5 mm
• Height NS 35/15: 55 mm
• Connection method: Screw connection
• Screw thread: M3
• Stripping length: 9 mm
• Tightening torque, min: 0.5 Nm
• Tightening torque max: 0.6 Nm
• Conductor cross section solid min: 0.14 mm²
• Conductor cross section solid max: 4 mm²
• Conductor cross section AWG min: 26
• Conductor cross section AWG max: 12
• Conductor cross section flexible min: 0.14 mm²
• Conductor cross section flexible max: 4 mm²
• Min. AWG conductor cross section, flexible: 26
• Max. AWG conductor cross section, flexible: 12
• Conductor cross section flexible, with ferrule without plastic sleeve min: 0.14 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max: 2.5 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min: 0.14 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max: 2.5 mm²
• 2 conductors with same cross section, solid min: 0.14 mm²
• 2 conductors with same cross section, solid max: 1.5 mm²
• 2 conductors with same cross section, stranded min: 0.14 mm²
• 2 conductors with same cross section, stranded max: 1.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min: 0.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max: 1.5 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min: 0.14 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max: 1.5 mm²
