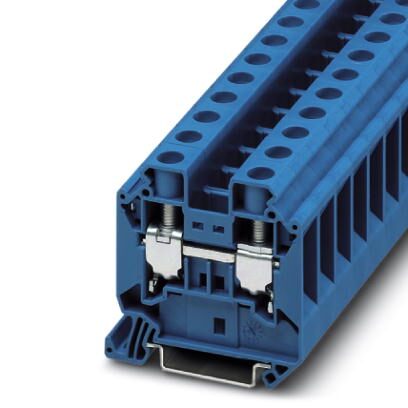

Phoenix Contact 3044209 Feed-through Terminal Block
The PHOENIX CONTACT UT 16 BU feed-through terminal block provides a reliable connection solution for a wide range of industrial applications. Its robust design and high-quality materials ensure safe and efficient power distribution. The terminal block is suitable for use in railway systems, machine building, plant engineering, and the process industry, offering a secure connection for conductors ranging from 1.5 mm² to 25 mm². It supports both solid and stranded conductors, and its compatibility with various connection methods enhances its versatility. The terminal block's fire protection rating and compliance with industry standards make it a dependable choice for demanding environments.
Phoenix Contact 3044209 Feed-through Terminal Block Specifications:
- Nominal Voltage: 1000 V
- Nominal Current: 76 A
- Connection Method: Screw connection
- Number of Connections: 2
- Cross Section: 1.5 - 25 mm²
- AWG: 16 - 4
- Width: 12.2 mm
- Height: 54.4 mm
- Color: blue
- Mounting Type: NS 35/7,5, NS 35/15
- Number of Levels: 1
- Potentials: 1
- Nominal Cross Section: 16 mm²
- Insulating Material: PA
- Flammability Rating: V0
- Area of Application: Railway industry, Machine building, Plant engineering, Process industry
- Rated Surge Voltage: 8 kV
- Degree of Pollution: 3
- Overvoltage Category: III
- Insulating Material Group: I
- Maximum Power Dissipation: 2.43 W
- Maximum Load Current: 101 A
- Open Side Panel: Yes
- Relative Insulation Material Temperature Index: 130 °C
- Temperature Index of Insulation Material: 130 °C
- Static Insulating Material Application in Cold: -60 °C
- Behavior in Fire for Rail Vehicles: Test passed
- Oxygen Index: >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface Flammability NFPA 130: passed
- Specific Optical Density of Smoke NFPA 130: passed
- Smoke Gas Toxicity NFPA 130: passed
- Calorimetric Heat Release NFPA 130: 28 MJ/kg
- Fire Protection for Rail Vehicles: HL 1 - HL 3
- Width (mm): 12.2
- End Cover Width (mm): 2.2
- Length (mm): 55.5
- Height NS 35/7,5 (mm): 55
- Height NS 35/15 (mm): 62.5
- Stripping Length (mm): 14
- Tightening Torque Min (Nm): 2.5
- Tightening Torque Max (Nm): 3
- Solid Conductor Min (mm²): 1.5
- Solid Conductor Max (mm²): 25
- AWG Solid Min: 16
- AWG Solid Max: 4
- Flexible Conductor Min (mm²): 1.5
- Flexible Conductor Max (mm²): 25
- AWG Flexible Min: 16
- AWG Flexible Max: 4
- Ferrule Without Plastic Sleeve Min (mm²): 1
- Ferrule Without Plastic Sleeve Max (mm²): 16
- Ferrule With Plastic Sleeve Min (mm²): 1
- Ferrule With Plastic Sleeve Max (mm²): 16
- 2 Conductors Solid Min (mm²): 1
- 2 Conductors Solid Max (mm²): 6
- 2 Conductors Stranded Min (mm²): 1
- 2 Conductors Stranded Max (mm²): 6
- 2 Conductors Stranded TWIN Ferrules Min (mm²): 0.75
- 2 Conductors Stranded TWIN Ferrules Max (mm²): 10
- 2 Conductors Stranded Ferrules Min (mm²): 1
- 2 Conductors Stranded Ferrules Max (mm²): 6
- Internal Cylindrical Gage: A7
