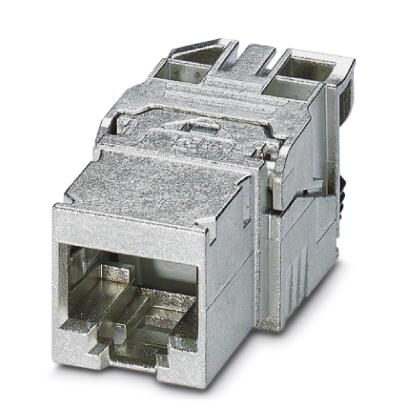

Phoenix Contact 1417274 Ethernet Socket Module
This RJ45 socket insert features an IP20 protection rating and supports high-speed data transfer up to 10 Gbps with CAT6 specifications. Crafted from durable zinc die-cast material, it accommodates eight positions and uses an IDC connection method compatible with AWG 26-22 cables. The design includes a straight cable outlet for easy installation without additional tools, ensuring reliable connectivity. Suitable for industrial and networking applications, it meets UL, cUL, and EAC approval standards, making it a robust choice for Ethernet networking in various environments.
Phoenix Contact 1417274 Ethernet Socket Module Specifications:
- Degree of Protection: IP20
- Number of Positions: 8
- Data Transfer Rate: 10 Gbps
- Category: CAT6
- Material: Zinc die-cast
- Connection Method: IDC connection
- Connection Cross Section: AWG 26-22
- Wire Diameter Including Insulation: 0.8 mm to 1.6 mm
- Insulation Resistance: > 500 MQ (100 V DC)
- Ambient Temperature (Operating): -10 °C to 60 °C
- Ambient Temperature (Storage/Transport): -40 °C to 70 °C
- Certifications: UL Recognized, cUL Recognized, EAC
Buy the Phoenix Contact Series Ethernet Connectors: CUC-I-J1ZNI-S-R4IDC8
Order the Phoenix Contact Ethernet Socket Module online today to enhance your network setup with reliable, high-speed connectivity. Designed with IP20 protection and quick IDC connection, this module ensures fast, secure data transfer for industrial and commercial applications. Made from sturdy zinc die-cast material, it supports CAT6 standards with 8 positions, delivering up to 10 Gbps of speed. Compatible with AWG 26-22 cables, it is an ideal solution for modern networking requiring durability, ease of installation, and certified safety standards.
Get Phoenix Contact CUC-I-J1ZNI-S-R4IDC8 today—built for high-speed data transmission and dependable Ethernet networking in industrial environments.
