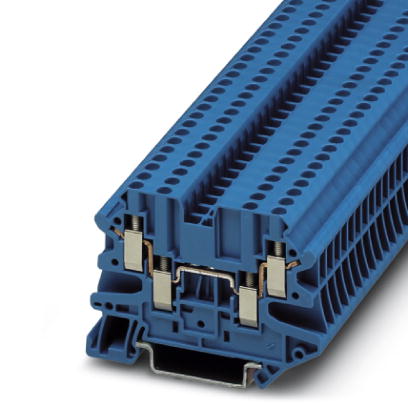

Phoenix Contact 3044555 Feed-through Terminal Block
The PHOENIX CONTACT UT 2,5-QUATTRO BU feed-through terminal block is a versatile solution for connecting multiple conductors in industrial environments. It is designed for use in railway applications, machine building, plant engineering, and the process industry. The terminal block offers a nominal voltage of 500V and a nominal current of 24A, accommodating a wide range of conductor sizes from 0.14 mm² to 4 mm². Its compact design and robust construction ensure reliable performance in demanding applications. The terminal block is also characterized by its flame retardant properties and compliance with various industry standards, making it a safe and dependable choice for electrical installations.
Phoenix Contact 3044555 Feed-through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 4
- Potentials: 1
- Nominal cross section: 2.5 mm²
- Color: blue
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Railway industry, Machine building, Plant engineering, Process industry
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.77 W
- Maximum load current: 30 A
- Nominal current IN: 24 A
- Nominal voltage UN: 500 V
- Open side panel: Yes
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Flame test method (DIN EN 60695-11-10): V0
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 5.2 mm
- End cover width: 2.2 mm
- Length: 65.4 mm
- Height: 46.9 mm
- Height NS 35/7,5: 47.5 mm
- Height NS 35/15: 55 mm
- Screw thread: M3
- Stripping length: 9 mm
- Tightening torque, min: 0.5 Nm
- Tightening torque max: 0.6 Nm
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 4 mm²
- Connection method: Screw connection
- Internal cylindrical gage: A3
