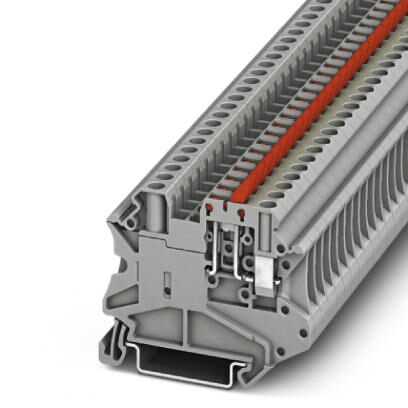

Phoenix Contact 3046152 Disconnect Terminal Block
The PHOENIX CONTACT UT 4-MTL KNIFE-RD is a knife disconnect terminal block designed for reliable and secure electrical connections in a variety of industrial applications. Its compact design and high current carrying capacity of 20A make it ideal for machine building, plant engineering, and other demanding environments. The terminal block utilizes a screw connection for robust and dependable wire termination, accommodating conductor cross sections from 0.14 mm² to 6 mm² (AWG 26-10). It is rated for a nominal voltage of 500V and a nominal current of 20A, ensuring safe and efficient power transmission. The knife disconnect mechanism allows for easy disconnection and reconnection of conductors, simplifying maintenance and troubleshooting. Its robust construction and compliance with industry standards like IEC 60947-7-1 guarantee long-lasting performance and reliability.
Phoenix Contact 3046152 Disconnect Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Potentials: 1
- Nominal cross section: 4 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Machine building
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 1.02 W
- Maximum load current: 20 A (with 6 mm² conductor cross section)
- Nominal current IN: 20 A
- Nominal voltage UN: 500 V
- Open side panel: No
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Flame test method (DIN EN 60695-11-10): V0
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 6.2 mm
- Length: 57.8 mm
- Height NS 35/7,5: 49.1 mm
- Height NS 35/15: 56.6 mm
- Connection method: Screw connection
- Connection in acc. with standard: IEC 60947-7-1
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 10
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 6 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
- 2 conductors with same cross section, solid min.: 0.14 mm²
- 2 conductors with same cross section, solid max.: 1.5 mm²
- 2 conductors with same cross section, stranded min.: 0.14 mm²
- 2 conductors with same cross section, stranded max.: 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve max.: 2.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve min.: 0.14 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve max.: 1.5 mm²
- Stripping length: 9 mm
- Internal cylindrical gage: A4
- Screw thread: M3
- Tightening torque, min: 0.6 Nm
- Tightening torque max: 0.8 Nm
- China RoHS: Environmentally Friendly Use Period = 50
