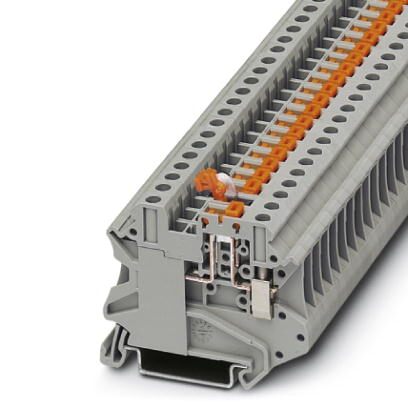

Phoenix Contact 3046171 disconnect terminal block
This knife disconnect terminal block features test socket screws for inserting test plugs, rated for 500 V and 20 A. It uses screw connection terminals compatible with conductor cross-sections from 0.14 mm² to 6 mm² (AWG 26 to 10). The device measures 57.8 mm in length and 6.2 mm in width, comes in gray, and is designed for reliable mounting on NS 35/7.5 and NS 35/15 fixtures. Its robust construction ensures precise connections suitable for railway and industrial applications, with tested mechanical stability and compliance with safety standards.
Phoenix Contact 3046171 disconnect terminal block Specifications:
- Rated voltage: 500 V
- Nominal current: 20 A
- Connection method: Screw connection
- Conductor cross-section: 0.14 mm² to 6 mm² (AWG 26 to 10)
- Dimensions: Length 57.8 mm, Width 6.2 mm
- Color: Gray
- Mounting: NS 35/7.5, NS 35/15
- Mechanical stability: Tested (5x conductor test passed)
- Temperature index of insulation: Not specified in provided data
- Standards and approvals: Recognized for railway, UL, cUL, EAC, cULus
Buy the Phoenix Contact 3046171 – Reliable Disconnect Terminal Block for Industrial Applications
Secure your electrical connections with the Phoenix Contact disconnect terminal block. Designed for industrial and railway applications, it features test sockets, screw connection terminals, and high durability. Measuring 57.8 mm in length and 6.2 mm wide, it supports conductor cross-sections from 0.14 mm² to 6 mm² and operates at 500 V, 20 A. Easy to install on NS 35 fixtures, it’s ideal for reliable, safe, and efficient wiring systems. Purchase online for fast delivery and expert support.
Get Phoenix Contact 3046171 today—built for precision and long-lasting durability in industrial and railway wiring.
Frequently Asked Questions
Where can I buy Phoenix Contact 3046171?
You can click on the BUY or RFQ button to purchase 3046171 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3046171?
You can download the 3046171 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3046171?
Phoenix Contact
