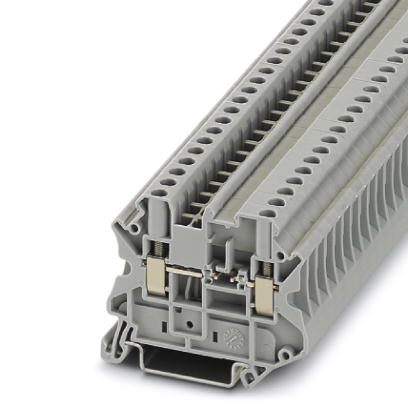

Phoenix Contact 3046237 Component Terminal Block
The PHOENIX CONTACT UT 4-MTD-BE component terminal block is a versatile solution for installing components that require individual selection. With a nominal voltage of 800V and a nominal current of 0.5A, this terminal block is suitable for a wide range of industrial applications, including power distribution, control systems, and automation equipment. Its screw connection method ensures reliable and secure connections, while the NS 35/7.5 and NS 35/15 mounting type allows for flexible installation options. The terminal block's compact size and consistent labeling contribute to efficient and organized electrical systems, simplifying maintenance and troubleshooting. Its robust construction and compliance with industry standards ensure long-term reliability and safety.
Phoenix Contact 3046237 Component Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 4 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-1
- Nominal current IN: 0.5 A
- Maximum load current: 0.5 A
- Nominal voltage UN: 800 V
- Open side panel: Yes
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Flame test method (DIN EN 60695-11-10): V0
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 6.2 mm
- Length: 57.8 mm
- Height NS 35/7,5: 47.5 mm
- Height NS 35/15: 55 mm
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 6 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 10
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
- 2 conductors with same cross section, solid min.: 0.14 mm²
- 2 conductors with same cross section, solid max.: 1.5 mm²
- 2 conductors with same cross section, stranded min.: 0.14 mm²
- 2 conductors with same cross section, stranded max.: 1.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.: 0.14 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.: 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 2.5 mm²
- Connection method: Screw connection
- Stripping length: 9 mm
- Internal cylindrical gage: A4
- Screw thread: M3
- Tightening torque, min: 0.6 Nm
- Tightening torque max: 0.8 Nm
