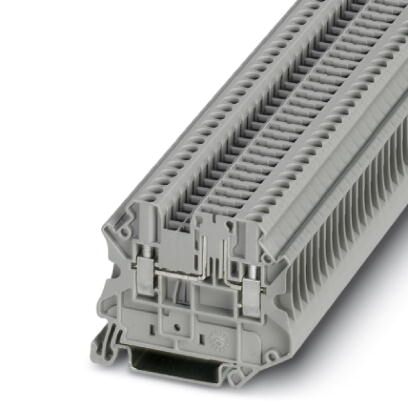

Phoenix Contact 3046388 Disconnect Terminal Block
The PHOENIX CONTACT UT 2,5-TG disconnect terminal block is a versatile solution for connecting wires in various industrial applications, particularly within the railway sector. This terminal block boasts a robust design, capable of handling a nominal voltage of 400V and a nominal current of 20A. Its screw connection ensures a secure and reliable electrical connection, while the compact dimensions (5.2 mm width, 57.8 mm length) facilitate easy integration into existing systems. The terminal block's flame retardant properties (V0 rating) and compliance with various industry standards (IEC 60947-7-1, CSA) further enhance its suitability for demanding environments. It is designed for use with NS 35/7.5 and NS 35/15 mounting rails.
Phoenix Contact 3046388 Disconnect Terminal Block Specifications:
- Base Series: UT 2,5-TG
- Number of Levels: 1
- Number of Connections: 2
- Potentials: 1
- Nominal Cross Section: 2.5 mm²
- Color: gray
- Insulating Material: PA
- Flammability Rating UL 94: V0
- Rated Surge Voltage: 6 kV
- Degree of Pollution: 3
- Overvoltage Category: III
- Insulating Material Group: I
- Maximum Power Dissipation: 0.77 W
- Maximum Load Current: 20 A (with 4 mm² conductor cross section)
- Nominal Current: 20 A (with 4 mm² conductor cross section)
- Nominal Voltage: 400 V
- Mounting: NS 35/7,5, NS 35/15
- Packing Unit: 1 STK
- Minimum Order Quantity: 50 STK
- Custom Tariff Number: 85369010
- Country of Origin: Germany
- Width: 5.2 mm
- End Cover Width: 2.2 mm
- Length: 57.8 mm
- Height NS 35/7,5: 47.5 mm
- Height NS 35/15: 55 mm
- Connection Method: Screw connection
- Conductor Cross Section Solid Min: 0.14 mm²
- Conductor Cross Section Solid Max: 4 mm²
- AWG Solid Min: 26
- AWG Solid Max: 12
- Conductor Cross Section Flexible Min: 0.14 mm²
- Conductor Cross Section Flexible Max: 4 mm²
- AWG Flexible Min: 26
- AWG Flexible Max: 12
- Stripping Length: 9 mm
- Internal Cylindrical Gage: A3
- Screw Thread: M3
- Tightening Torque Min: 0.5 Nm
- Tightening Torque Max: 0.6 Nm
