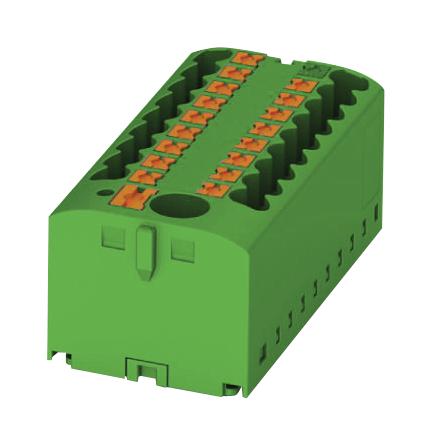

Phoenix Contact PTFIX618X25GN Distribution Block
The distribution block PTFIX 6/18X2.5 GN is a versatile, green, push-in connection terminal block designed for reliable electrical distribution in industrial settings. It features 19 connection points, rated for 500 V and 24 A, with sturdy PA insulation and flame-retardant properties according to UL 94 VO. Its compact dimensions of 56 mm width, 21.2 mm height, and 28.2 mm length make it space-efficient. Suitable for DIN rail mounting, it ensures clear wiring, high safety standards, and compliance with industry regulations for rail vehicles and automation systems.
Phoenix Contact PTFIX618X25GN Distribution Block Specifications:
- Color: Green
- Insulating material: PA
- Flammability rating: UL 94 VO
- Rated surge voltage: 6 kV
- Maximum power dissipation: 1.31 W
- Maximum load current: 24A
- Nominal current: 24A
- Nominal voltage: 500 V
- Width: 56 mm
- Height: 21.2 mm
- Length: 28.2 mm
- Connection method: Push-in
- Conductor cross section: solid 0.14 mm² - 4 mm², AWG 26-12; flexible 0.14 mm² - 2.5 mm², AWG 26-14
- Stripping length: 8 - 10 mm or 10 - 12 mm
- Compliance: UL, CSA, cUL Recognized
- Environmental: Temperature index 130°C, fire protection R22-HL3, flame retardant
- Standard conformity: IEC 60998-2-2
Buy the Phoenix Contact PTFIX 6/18X2,5 GN – Reliable Distribution Block for Industrial Applications
Purchase the Phoenix Contact distribution block PTFIX 6/18X2,5 GN online and experience quick, tool-free wiring with push-in connections. Its compact design saves space and offers reliable electrical distribution rated for 500 V and 24 A, ideal for industrial automation, control panels, and rail vehicle applications. The device features UL 94 VO flame retardancy, high surge voltage resistance, and easy DIN rail mounting for flexible installation. Ensure efficient, safe, and professional electrical connections with this high-quality distribution block made for demanding industrial environments.
Get Phoenix Contact PTFIX 6/18X2,5 GN today—built for precision, space-saving, and durable industrial electrical distribution.
Frequently Asked Questions
Where can I buy Phoenix Contact PTFIX618X25GN?
You can click on the BUY or RFQ button to purchase PTFIX618X25GN from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PTFIX618X25GN?
You can download the PTFIX618X25GN datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PTFIX618X25GN?
Phoenix Contact
