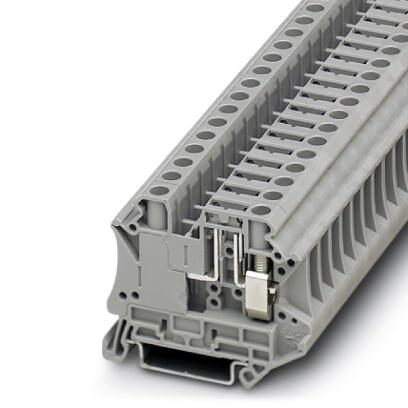

Phoenix Contact 3046486 Disconnect Terminal Block
The PHOENIX CONTACT UT 6-TG-EX disconnect terminal block is a versatile component designed for reliable electrical connections in various industrial settings. It boasts a nominal voltage of 500V and a nominal current of 20A, making it suitable for demanding applications. The screw connection ensures secure and stable connections, while the compact design allows for efficient space utilization. Its Ex nA approval makes it suitable for use in potentially explosive atmospheres. The double bridge shaft enables flexible potential distribution and supply, enhancing system flexibility. This terminal block is commonly used in machine building and plant engineering applications.
Phoenix Contact 3046486 Disconnect Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 6 mm²
- Color: gray
- Mounting: NS 35/7,5, NS 35/15
- Nominal voltage: 500 V
- Nominal current: 20 A
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Machine building, Plant engineering
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-1
- Maximum load current: 20 A (with 10 mm² conductor cross section)
- Open side panel: No
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Flame test method (DIN EN 60695-11-10): V0
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 8.2 mm
- Length: 57.8 mm
- Height NS 35/7,5: 47.5 mm
- Height NS 35/15: 55 mm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 10 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 10 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 8
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 6 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 6 mm²
- 2 conductors with same cross section, solid min.: 0.2 mm²
- 2 conductors with same cross section, solid max.: 2.5 mm²
- 2 conductors with same cross section, stranded min.: 0.2 mm²
- 2 conductors with same cross section, stranded max.: 2.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve min.: 0.25 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve max.: 6 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve max.: 4 mm²
- Connection method: Screw connection
- Stripping length: 10 mm
- Internal cylindrical gage: A5
- Screw thread: M4
- Tightening torque, min: 1.5 Nm
- Tightening torque max: 1.8 Nm
- China RoHS: Environmentally Friendly Use Period = 50
