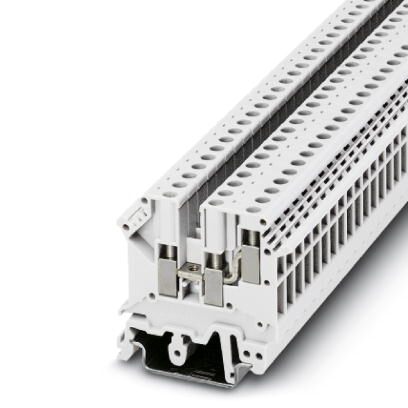

Phoenix Contact 3048548 Electrical Terminal Block
A 1-level terminal block featuring double connections on one side, suitable for wire cross sections ranging from 0.2 to 4 mm² (AWG 24 to 12). It has a width of 6.2 mm and is colored white, ideal for secure and organized electrical connections.
Phoenix Contact 3048548 Electrical Terminal Block Specifications:
- Current Rating: 32 A
- Voltage Rating: 500 V
- Wire Cross Section Range: 0.2 - 4 mm² (AWG 24 - 12)
- Width: 6.2 mm
- Color: White
- Number of Levels: 1
- Connection Type: Feed-through, double connection on one side
- Standards and Certifications: UL Recognized, cUL Recognized, EAC, ATEX/UL Recognized, cULus Recognized
- Nominal Voltage UN: 150 V
- Maximum Load Current: Not to be exceeded by total connected conductors
- Connection Data: Suitable for stranded conductors, ferrules without plastic sleeves 0.25 mm² to 1.5 mm²
- Product Dimensions: Length varies, width 6.2 mm
- Material: Polyamide (PA), flame-retardant UL 94V-0
- Applicable Standards: ETIM 4.0/5.0 EC000897, UNSPSC 39121410
- Approvals: UL, cUL, EAC, ATEX
Buy the Phoenix Contact Series UK 5-TWIN WH: 3048548
Purchase the Phoenix Contact UK 5-TWIN WH 3048548 terminal block online today. This reliable single-level connector offers double connections, rated for 32 amps and operating at 500 volts. Designed for wire sizes from 0.2 to 4 mm², it ensures secure and organized electrical wiring. Ideal for automation, control panels, and industrial applications. Manufactured with high-quality flame-retardant material, it complies with UL, cUL, and other standards. Order now for quick delivery and durable performance, suitable for various electrical projects and installations.
Get Phoenix Contact UK 5-TWIN WH 3048548 today—built for secure electrical connections and long-lasting durability.
