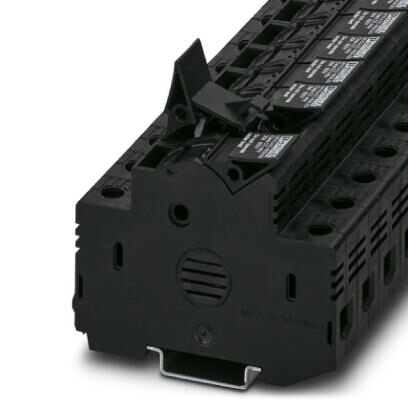

Phoenix Contact 3048632 Fuse Terminal Block
This modular fuse terminal block is designed for reliable fuse connections using glass or ceramic fuses. It features a screw connection method compatible with conductors ranging from 1.5 mm² to 25 mm² (AWG 16 to 4). With a rated current of 32 A and voltage of 600 V, it ensures safe and efficient circuit protection. The compact design measures 54 mm in width, supports Class CC fuse types, and is suitable for mounting on NS 35/7.5 or NS 35/15 bases. Its durable black finish makes it ideal for industrial electrical applications requiring secure fuse positioning.
Phoenix Contact 3048632 Fuse Terminal Block Specifications:
- Connection method: Screw connection
- Cross section range: 1.5 mm² to 25 mm² (AWG 16 to 4)
- Rated current: 32 A
- Rated voltage: 600 V
- Width: 54 mm
- Fuse type: Class CC
- Fuse material: Glass / ceramics / ...
- Mounting: NS 35/7.5, NS 35/15
- Color: Black
- Standards and regulations: CSA / UL Listed / cUL Listed / EAC / cULus Listed
Buy the Phoenix Contact Series UK 10,3-CC HESILED N 600: 3048632
Secure your electrical circuits with the Phoenix Contact fuse terminal block, designed for glass and ceramic fuses. Rated for 32 A and 600 V, it offers reliable screw connections accommodating conductors from 1.5 mm² to 25 mm². Its compact width of 54 mm fits into limited spaces while providing industry-standard safety, with approvals from CSA, UL, and others. Perfect for industrial control panels, this black fuse terminal block ensures durable and safe fuse integration, simplifying maintenance and enhancing circuit reliability.
Order your Phoenix Contact Series UK 10,3-CC HESILED N 600 fuse terminal block today and ensure reliable fuse connections for your industrial projects.
