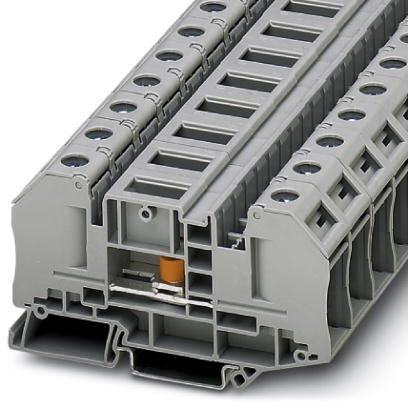

Phoenix Contact 3049039 Test Disconnect Terminal Block
This test disconnect terminal block is designed for electrical testing and measurement applications, rated for 1000 V and 41 A. It features a bolt connection for secure attachment, with hinged cover flaps for quick, easy wiring. The terminal is equipped with captive spring-loaded spacers to prevent loosening, and offers large labeling areas for identification. It is made to be touchproof for safety, tested for railway standards, and compatible with CLIPLINE complete system plug-in bridges for efficient potential distribution.
Phoenix Contact 3049039 Test Disconnect Terminal Block Specifications:
- Connection Type: Bolt connection
- Cross Section: 0.1 mm² - 6 mm²
- AWG Range: 26 - 10
- Nominal Voltage: 1000 V
- Nominal Current: 41 A
- Length: 91.4 mm
- Width: 16.3 mm
- Color: Gray
- Assembly: NS 35/7.5, NS 35/15
- Protection: Touchproof cover
- Tested for railway applications
- Rated for standard testing frequencies from 5 Hz to 150 Hz
- Standards: UL Recognized, cUL Recognized, EAC, ABS
- Approvals include UL, cUL, EAC, ABS
- Weight: 50.056 g
- Suitable for electrical testing and potential distribution
Buy the Buy Phoenix Contact Test Disconnect Terminal Block Part Number 3049039 Online
Purchase the Phoenix Contact test disconnect terminal block online for reliable electrical testing solutions. Rated for 1000 V and 41 A, it features secure bolt connections, hinged covers for easy wiring, and touchproof safety design. Suitable for railway and industrial applications, it supports standard test frequencies and offers large labeling options for quick identification. Achieve safe, quick, and efficient wiring connections with this high-quality terminal block designed to meet rigorous safety standards and facilitate maintenance tasks easily.
Get Phoenix Contact 3049039 today—designed for precise electrical testing with secure bolt connection and safety features.
Frequently Asked Questions
Where can I buy Phoenix Contact 3049039?
You can click on the BUY or RFQ button to purchase 3049039 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3049039?
You can download the 3049039 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3049039?
Phoenix Contact
