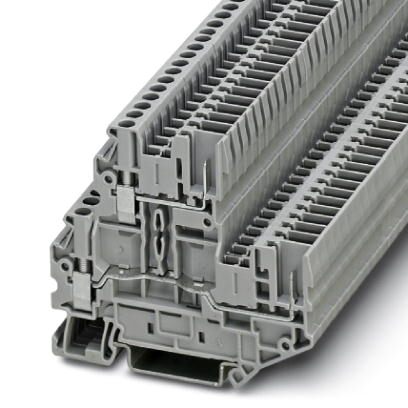

Phoenix Contact 3060351 Double Level Terminal Block
The PHOENIX CONTACT UTTB 2,5/2P double-level terminal block offers a compact and versatile solution for connecting multiple circuits in a single space. Its screw/plug-in connection ensures secure and reliable terminations, while the double-level design optimizes space utilization in control cabinets and distribution panels. The terminal block is suitable for applications requiring high current carrying capacity and robust performance in demanding environments. It is commonly used in industrial automation, power distribution, and control systems where efficient and reliable connections are critical.
Phoenix Contact 3060351 Double Level Terminal Block Specifications:
- Number of levels: 2
- Number of connections: 4
- Potentials: 2
- Nominal cross section: 2.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.77 W
- Ambient temperature (operation): -50 °C
- Ambient temperature (assembly): -40 °C ... 100 °C
- Maximum load current: 24 A
- Nominal current IN: 24 A
- Nominal voltage UN: 500 V
- Open side panel: Yes
- Insertion/withdrawal cycles mechanical: 100
- Result of tight fit on support: Test passed
- Tight fit on carrier: NS 35
- Setpoint: 1 N
- Short circuit stability result: Test passed
- Conductor cross section short circuit testing: 2.5 mm²
- Short-time current: 0.3 kA
- Result of thermal test: Test passed
- Proof of thermal characteristics (needle flame) effective duration: 30 s
- Oscillation, broadband noise test result: Test passed
- Test specification, oscillation, broadband noise: DIN EN 50155 (VDE 0115-200):2008-03
- Test spectrum: Service life test category 1, class B, body mounted
- Test frequency: f1= 5 Hz to f2= 150 Hz
- ASD level: 0.02 g²/Hz
- Acceleration: 5 g
- Test duration per axis: 5 h
- Test directions: X-, Y- and Z-axis (pos. and neg.)
- Shock test result: Test passed
- Test specification, shock test: DIN EN 50155 (VDE 0115-200):2008-03
- Shock form: Half-sine
- Shock duration: 30 ms
- Number of shocks per direction: 3
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
- Static insulating material application in cold: -60 °C
- Packing unit: 1 STK
- Minimum order quantity: 50 STK
- Weight per Piece (excluding packing): 14.800 g
- Custom tariff number: 85369010
- Country of origin: Poland
- Width: 5.2 mm
- End cover width: 2.2 mm
- Length: 69.9 mm
- Height: 64.4 mm
- Height NS 35/7,5: 65 mm
- Height NS 35/15: 72.5 mm
- Connection method: Screw/plug-in connection
- Connection in acc. with standard: IEC 61984
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 4 mm²
- Stripping length: 9 mm
