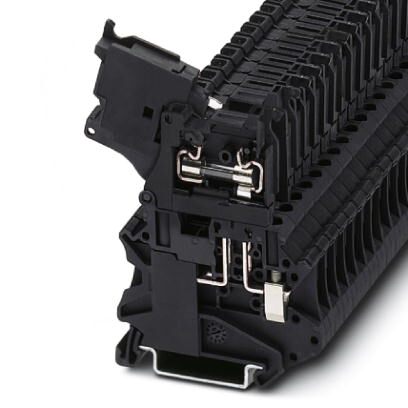

Phoenix Contact 3060527 Fuse Modular Terminal Block
The PHOENIX CONTACT UT 4-HESI (5X20) BU fuse modular terminal block provides a reliable solution for circuit protection in various industrial applications. This terminal block is designed to accept a G/5x20 fuse, offering protection against overcurrent and short circuits. It features a screw connection for secure wire termination, accommodating wire gauges from 0.14 mm² to 6 mm² (26-10 AWG). The terminal block is mounted on NS 35/7.5 or NS 35/15 rails and is suitable for applications requiring a nominal current of 6.3A and a nominal voltage of 500V. Its robust construction and compliance with standards like IEC 60947-7-3 ensure reliable performance in demanding environments.
Phoenix Contact 3060527 Fuse Modular Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 4 mm²
- Color: blue
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Maximum power dissipation for nominal condition: 1.6 W
- Fuse: G / 5 x 20
- Fuse type: Glass / ceramics / ...
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation: max. 1.6 W
- Connection in acc. with standard: IEC 60947-7-3
- Maximum load current: 6.3 A
- Nominal current IN: 6.3 A
- Nominal voltage UN: 500 V
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 6 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 10
- Connection method: Screw connection
- Stripping length: 9 mm
- Internal cylindrical gage: A4
- Screw thread: M3
- Tightening torque, min: 0.6 Nm
- Tightening torque max: 0.8 Nm
- Width: 6.2 mm
- Length: 57.8 mm
- Height NS 35/7,5: 73 mm
- Height NS 35/15: 80.5 mm
- REACh SVHC: Lead 7439-92-1
- China RoHS: Environmentally Friendly Use Period = 50
