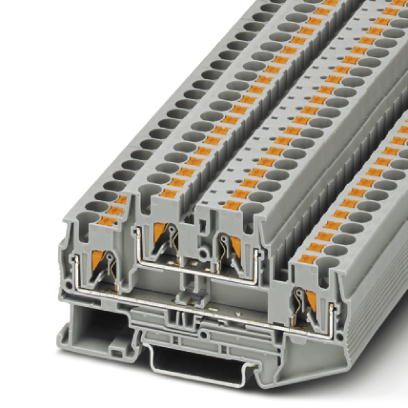

Phoenix Contact 3211786 Double-Level Terminal Block
This Phoenix Contact multi-level terminal block offers reliable electrical connections with a 2-level design. It handles up to 28A and 600V, supporting wire sizes from #24 to #10 AWG. Featuring push-in connection technology, it enables quick, tool-free wiring with ferrules or solid conductors. Compact and suitable for confined spaces, the gray terminal block includes a test connection, tested for railway applications, ensuring safety and robustness in demanding environments. Its design promotes efficient installation and maintenance in industrial control panels and automation systems.
Phoenix Contact 3211786 Double-Level Terminal Block Specifications:
- Conductor cross section: 0.2 mm² - 4.0 mm²
- Wire Range: #24 - #10 AWG
- Current Rating: 28 A (with 4 mm² conductor), 32 A (with 6 mm² conductor)
- Voltage Rating: 300 V (UL/CSA), 600 V (VDE)
- Connection type: Push-in connection
- Dimensions: Width 6.2 mm
- Color: Gray
- Mounting type: NS 35/7.5, NS 35/15
- Test feature: Additional test connection
- Standards: UL Recognized, cUL Recognized, CSA, VDE
- Approvals: IECEE CB Scheme, EAC, BV, EAC, GL/NK, cULus Recognized, ATEX/IECEx (Ex approved)
Buy the Buy Phoenix Contact Double-Level Terminal Block Part Number 3211786 Online
Purchase the Phoenix Contact double-level terminal block number 3211786 online today and benefit from quick, reliable electrical connections. Its compact push-in design allows for tool-free wiring, making installation easier and more efficient. Ideal for automation and control panels, this gray terminal block supports wire sizes from #24 to #10 AWG, rated up to 28A and 600V for versatile industrial use. Tested and approved for railway applications, it offers superior safety and durability for demanding environments.
Order your Phoenix Contact series 3211786 double-level terminal block today and ensure secure, easy wiring in your industrial automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 3211786?
You can click on the BUY or RFQ button to purchase 3211786 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3211786?
You can download the 3211786 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3211786?
Phoenix Contact
