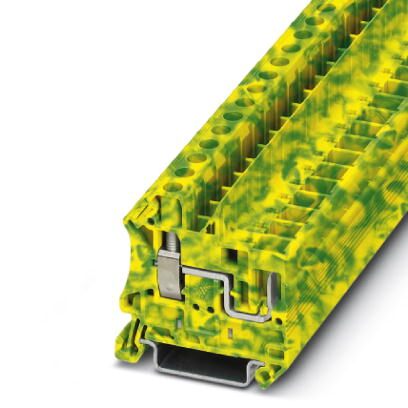

Phoenix Contact 3060555 Ground Modular Terminal Block

Phoenix Contact 3060555 Ground Modular Terminal Block Specifications:

• Number of levels: 1
• Number of connections: 2
• Potentials: 1
• Nominal cross section: 6 mm²
• Color: green-yellow
• Mounting type: NS 35/7,5, NS 35/15
• Packing unit: 1 pc
• Weight per Piece (excluding packing): 21.2 g
• Custom tariff number: 85369010
• Country of origin: China
• Flammability rating according to UL 94: V0
• Rated surge voltage: 8 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Open side panel: Yes
• Insertion/withdrawal cycles mechanical: 100
• Result of surge voltage test: Test passed
• Surge voltage test setpoint: 9.8 kV
• Result of power-frequency withstand voltage test: Test passed
• Power frequency withstand voltage setpoint: 4.26 kV
• Result of the test for mechanical stability of terminal points: Test passed
• Result of tight fit on support: Test passed
• Tight fit on carrier: NS 35
• Setpoint: 5 N
• Short circuit stability result: Test passed
• Conductor cross section short circuit testing: 6 mm²
• Short-time current: 0.72 kA
• Result of thermal test: Test passed
• Proof of thermal characteristics (needle flame) effective duration: 30 s
• Oscillation, broadband noise test result: Test passed
• Test specification, oscillation, broadband noise: DIN EN 50155 (VDE 0115-200):2008-03
• Test spectrum: Service life test category 1, class B, body mounted
• Test frequency: f1= 5 Hz to f2= 150 Hz
• ASD level: 1.857 (m/s² 2/Hz)
• Acceleration: 0,8 g
• Test duration per axis: 5 h
• Test directions: X-, Y- and Z-axis
• Shock test result: Test passed
• Test specification, shock test: DIN EN 50155 (VDE 0115-200):2008-03
• Shock form: Half-sine
• Shock duration: 30 ms
• Number of shocks per direction: 3
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
• Static insulating material application in cold: -60 °C
• Width: 8.2 mm
• End cover width: 2.2 mm
• Length: 49.1 mm
• Height NS 35/7,5: 47.5 mm
• Height NS 35/15: 55 mm
• Connection method: Screw/plug-in connection
• Connection in acc. with standard: IEC 61984, CUL
• Conductor cross section solid min.: 0.2 mm²
• Conductor cross section solid max.: 10 mm²
• Conductor cross section AWG min.: 24
• Conductor cross section AWG max.: 8
• Conductor cross section flexible min.: 0.2 mm²
• Conductor cross section flexible max.: 10 mm²
• Min. AWG conductor cross section, flexible: 24
• Max. AWG conductor cross section, flexible: 8
• Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max.: 6 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max.: 6 mm²
• 2 conductors with same cross section, solid min.: 0.2 mm²
• 2 conductors with same cross section, solid max.: 2.5 mm²
• 2 conductors with same cross section, stranded min.: 0.2 mm²
• 2 conductors with same cross section, stranded max.: 2.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 4 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.: 0.25 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.: 1.5 mm²
• Stripping length: 10 mm
• Internal cylindrical gage: A5
• Screw thread: M4
• Tightening torque, min: 1.5 Nm
• Tightening torque max: 1.8 Nm
