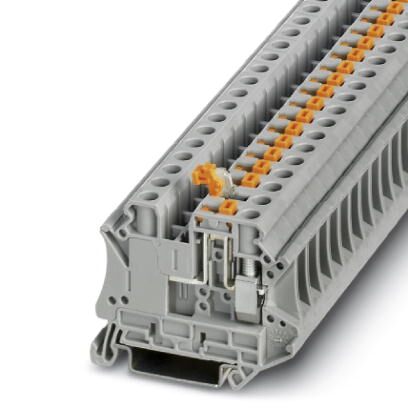

Phoenix Contact 3064069 Knife Disconnect Terminal Block

Phoenix Contact 3064069 Knife Disconnect Terminal Block Specifications:

• Number of levels: 1
• Number of connections: 2
• Nominal cross section: 6 mm²
• Color: gray
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Rated surge voltage: 6 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Connection in acc. with standard: IEC 60947-7-1
• Maximum load current: 20 A (with 10 mm² conductor cross section)
• Nominal current IN: 20 A
• Nominal voltage UN: 500 V
• Open side panel: No
• Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
• Back of the hand protection: guaranteed
• Finger protection: guaranteed
• Result of surge voltage test: Test passed
• Surge voltage test setpoint: 7.3 kV
• Result of power-frequency withstand voltage test: Test passed
• Power frequency withstand voltage setpoint: 1.89 kV
• Result of the test for mechanical stability of terminal points: Test passed
• Result of bending test: Test passed
• Bending test rotation speed: 10 rpm
• Bending test turns: 135
• Bending test conductor cross section/weight: 0.2 mm² / 0.2 kg, 6 mm² / 1.4 kg, 10 mm² / 2 kg
• Tensile test result: Test passed
• Conductor cross section tensile test: 0.2 mm², 6 mm², 10 mm²
• Tractive force setpoint: 10 N, 80 N, 90 N
• Result of tight fit on support: Test passed
• Tight fit on carrier: NS 35
• Setpoint: 5 N
• Result of voltage-drop test: Test passed
• Requirements, voltage drop: ≤ 3.2 mV
• Result of temperature-rise test: Test passed
• Short circuit stability result: Test passed
• Conductor cross section short circuit testing: 2.5 mm²
• Short-time current: 0.3 kA
• Result of thermal test: Test passed
• Proof of thermal characteristics (needle flame) effective duration: 30 s
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 120 °C
• Width: 8.2 mm
• Length: 57.8 mm
• Height NS 35/7,5: 49.1 mm
• Height NS 35/15: 56.6 mm
• Connection method: Screw connection
• Conductor cross section solid min: 0.2 mm²
• Conductor cross section solid max: 10 mm²
• Conductor cross section AWG min: 24
• Conductor cross section AWG max: 8
• Conductor cross section flexible min: 0.2 mm²
• Conductor cross section flexible max: 10 mm²
• Min. AWG conductor cross section, flexible: 24
• Max. AWG conductor cross section, flexible: 8
• Conductor cross section flexible, with ferrule without plastic sleeve min: 0.25 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max: 6 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min: 0.25 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max: 6 mm²
• 2 conductors with same cross section, solid min: 0.2 mm²
• 2 conductors with same cross section, solid max: 2.5 mm²
• 2 conductors with same cross section, stranded min: 0.2 mm²
• 2 conductors with same cross section, stranded max: 2.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min: 0.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max: 4 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min: 0.25 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max: 1.5 mm²
• Stripping length: 10 mm
• Internal cylindrical gage: A5
• Screw thread: M4
• Tightening torque, min: 1.5 Nm
• Tightening torque max: 1.8 Nm
• Packing unit: 1 pc
• Minimum order quantity: 50 pc
• Weight per Piece (excluding packing): 18.76 g
• Custom tariff number: 85369010
• Country of origin: Poland
