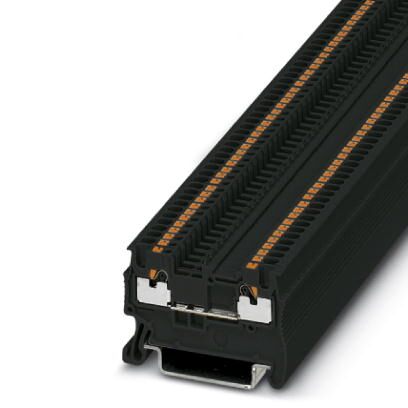

Phoenix Contact 3208128 PT 1.5/S BK Terminal Block

Phoenix Contact 3208128 PT 1.5/S BK Terminal Block Specifications:

• Number of levels: 1
• Number of connections: 2
• Potentials: 1
• Nominal cross section: 1.5 mm²
• Color: black
• Mounting type: NS 35/7,5, NS 35/15
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Rated surge voltage: 6 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Maximum power dissipation for nominal condition: 0.56 W
• Maximum load current: 17.5 A
• Nominal current IN: 17.5 A
• Nominal voltage UN: 500 V
• Open side panel: Yes
• Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
• Finger protection: guaranteed
• Result of surge voltage test: Test passed
• Surge voltage test setpoint: 7.3 kV
• Result of power-frequency withstand voltage test: Test passed
• Power frequency withstand voltage setpoint: 1.89 kV
• Result of the test for mechanical stability of terminal points: Test passed
• Result of bending test: Test passed
• Bending test rotation speed: 10 rpm
• Bending test turns: 135
• Bending test conductor cross section/weight: 0.14 mm² / 0.2 kg, 1.5 mm² / 0.4 kg
• Tensile test result: Test passed
• Conductor cross section tensile test: 0.14 mm²
• Tractive force setpoint: 10 N
• Conductor cross section tensile test (1.5 mm²): 40 N
• Result of tight fit on support: Test passed
• Tight fit on carrier: NS 35
• Setpoint: 1 N
• Result of voltage-drop test: Test passed
• Requirements, voltage drop: ≤ 3.2 mV
• Result of temperature-rise test: Test passed
• Short circuit stability result: Test passed
• Conductor cross section short circuit testing: 1.5 mm²
• Short-time current: 0.18 kA
• Result of thermal test: Test passed
• Ageing test for screwless modular terminal block temperature cycles: 192
• Proof of thermal characteristics (needle flame) effective duration: 30 s
• Result of aging test: Test passed
• Oscillation, broadband noise test result: Test passed
• Test specification, oscillation, broadband noise: DIN EN 50155 (VDE 0115-200):2008-03
• Test spectrum: Service life test category 2, bogie-mounted
• Test frequency: f1= 5 Hz to f2= 250 Hz
• ASD level: 6.12 (m/s²)/2/Hz
• Acceleration: 3.12 g
• Test duration per axis: 5 h
• Test directions: X-, Y- and Z-axis
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
• Static insulating material application in cold: -60 °C
• Behavior in fire for rail vehicles (DIN 5510-2): Test passed
• Flame test method (DIN EN 60695-11-10): V0
• Oxygen index (DIN EN ISO 4589-2): >32 %
• NF F16-101, NF F10-102 Class I: 2
• NF F16-101, NF F10-102 Class F: 2
• Surface flammability NFPA 130 (ASTM E 162): passed
• Specific optical density of smoke NFPA 130 (ASTM E 662): passed
• Smoke gas toxicity NFPA 130 (SMP 800C): passed
• Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
• Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
• Width: 3.5 mm
• End cover width: 2.2 mm
• Length: 45 mm
• Height: 30.5 mm
• Height NS 35/7,5: 32 mm
• Height NS 35/15: 39.5 mm
• Connection method: Push-in connection
• Stripping length: 8 mm
• Conductor cross section solid min.: 0.14 mm²
• Conductor cross section solid max.: 1.5 mm²
• Conductor cross section AWG min.: 26
• Conductor cross section AWG max.: 14
• Conductor cross section flexible min.: 0.14 mm²
• Conductor cross section flexible max.: 1.5 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max.: 1.5 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max.: 1 mm² Using the AI-S 1-8 TQ ferrule, Order No. 1200293, is recommended
• Internal cylindrical gage: A1 / B1
