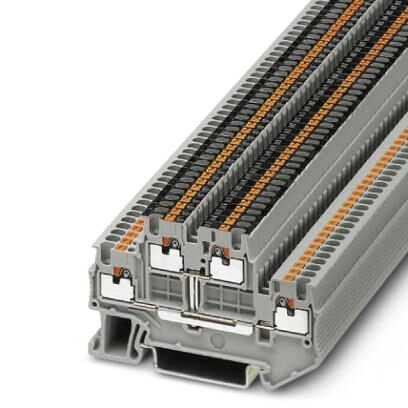

Phoenix Contact 3208540 Double Level Terminal Block
The PHOENIX CONTACT PTTB 1,5/S-PV double-level terminal block offers a compact design and tool-free wiring with its push-in connection. It's ideal for applications requiring high reliability and space-saving solutions, such as railway systems, machine building, and plant engineering. The terminal block supports conductors ranging from 0.14 mm² to 1.5 mm² and is characterized by its robust construction and compliance with various industry standards, including IEC 60947-7-1 and DIN EN 50274. It also provides an additional test connection and shock protection, ensuring safe and efficient operation.
Phoenix Contact 3208540 Double Level Terminal Block Specifications:
- Number of levels: 2
- Number of connections: 4
- Nominal cross section: 1.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Railway industry, Machine building, Plant engineering
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.56 W
- Connection in acc. with standard: IEC 60947-7-1
- Nominal current IN: 16 A
- Maximum load current: 16 A
- Nominal voltage UN: 500 V
- Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 1.5 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 1.5 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 14
- Stripping length: 8 mm ... 10 mm
- Internal cylindrical gage: A1 / B1
