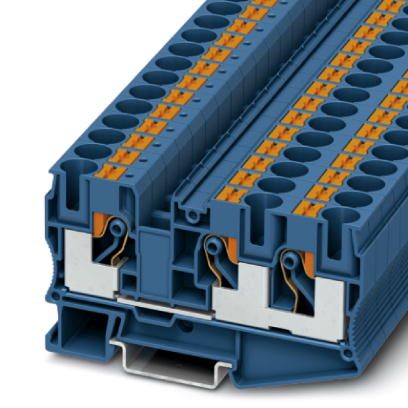

Phoenix Contact 3208747 Feed-through terminal block
The PHOENIX CONTACT PT 10-TWIN BU feed-through terminal block is designed for reliable and efficient connections in a variety of industrial environments. Its Push-in connection simplifies wiring, while the compact design allows for space-saving installation. The terminal block is suitable for railway applications and machine building, offering a nominal current of 57A and a voltage of 1000V. It features an additional test connection and is tested for railway applications, ensuring robust performance and safety.
Phoenix Contact 3208747 Feed-through terminal block Specifications:
- Number of levels: 1
- Number of connections: 3
- Potentials: 1
- Nominal cross section: 10 mm²
- Color: blue
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Railway industry, Machine building, Plant engineering
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 1.82 W
- Designation: Level 1 above 1 below 1
- Maximum load current: 70 A
- Nominal current IN: 57 A
- Nominal voltage UN: 1000 V
- Open side panel: Yes
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Flame test method (DIN EN 60695-11-10): V0
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 10.2 mm
- End cover width: 2.2 mm
- Length: 88.9 mm
- Height: 49.5 mm
- Height NS 35/7,5: 50.5 mm
- Height NS 35/15: 58 mm
- Conductor cross section solid min.: 0.5 mm²
- Conductor cross section solid max.: 16 mm²
- Conductor cross section AWG min.: 20
- Conductor cross section AWG max.: 6
- Conductor cross section flexible min.: 0.5 mm²
- Conductor cross section flexible max.: 16 mm²
- Min. AWG conductor cross section, flexible: 20
- Max. AWG conductor cross section, flexible: 8
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 10 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 10 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 4 mm²
- Internal cylindrical gage: A6
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- Custom tariff number: 85369010
- Packing unit: 1 pc
- GTIN: 4046356643627
- Weight per Piece (excluding packing): 38.400 g
- Country of origin: China
