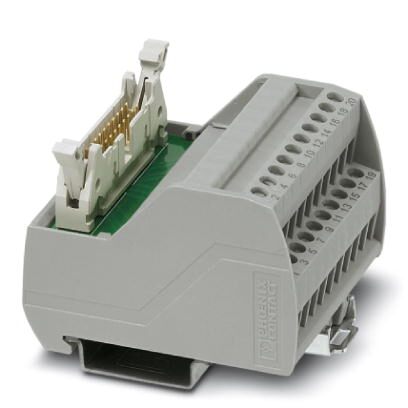

Phoenix Contact VIP2SCFLK20 Interface Module
The PHOENIX CONTACT VIP-2/SC/FLK20 interface module is a versatile component designed to simplify connections in industrial automation and control systems. It facilitates a 1:1 connection between field-level devices and controller-level systems, utilizing a screw connection for field-level connections and an IDC/FLK pin strip for controller-level connections. The module is designed for mounting on NS 35 rails, offering a space-saving and organized solution. It supports a wide range of conductor sizes and is compliant with various industry standards, making it suitable for applications requiring reliable and efficient data transmission.
Phoenix Contact VIP2SCFLK20 Interface Module Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 123.0 g
- Custom tariff number: 85369010
- Country of origin: United States
- Width: 55.1 mm
- Height: 65.5 mm
- Depth: 56 mm
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Max. perm. operating voltage: 60 V AC/DC
- Max. perm. current (per branch): 1 A
- Number of positions: 20
- Status display: No
- Mounting position: any
- Standards/regulations (General): IEC 60603-13
- Rated surge voltage: 0.6 kV
- Degree of pollution: 2
- Overvoltage category: II
- Connection method (Field level): Screw connection
- Stripping length (Field level): 8 mm
- Screw thread (Field level): M 3
- Conductor cross section solid (Field level): 0.2 mm² ... 4 mm²
- Conductor cross section flexible (Field level): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (Field level): 24 ... 12
- Connection method (Controller level): IDC/FLK pin strip (2.54 mm)
- Number of connections (Controller level): 1
- Pitch (Controller level): 2.54 mm
- Standards/regulations (Connection): CSA, IEC 60664, DIN EN 50178, IEC 62103
- eCl@ss 4.0: 27250313
- eCl@ss 4.1: 27250313
- eCl@ss 5.0: 27250313
- eCl@ss 5.1: 27250313
- eCl@ss 6.0: 27242608
- eCl@ss 7.0: 27141152
- eCl@ss 8.0: 27141152
- eCl@ss 9.0: 27141152
- ETIM 2.0: EC001434
- ETIM 3.0: EC001604
- ETIM 4.0: EC001604
- ETIM 5.0: EC002780
- UNSPSC 6.01: 30211824
- UNSPSC 7.0901: 39121421
- UNSPSC 11: 39121421
- UNSPSC 12.01: 39121421
- UNSPSC 13.2: 39121421
- CSA (Nominal current IN): 1 A
- CSA (Nominal voltage UN): 125 V
- cUL Recognized (Nominal current IN): 1 A
- cUL Recognized (Nominal voltage UN): 125 V
- UL Recognized (Nominal current IN): 1 A
- UL Recognized (Nominal voltage UN): 125 V
