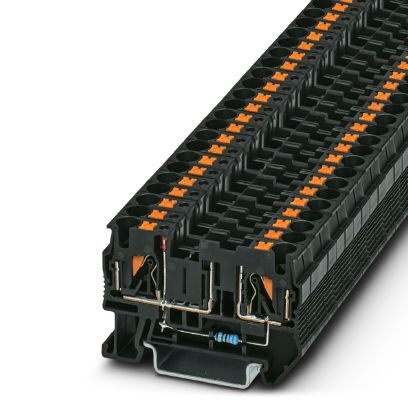

Phoenix Contact 3208951 Fuse Modular Terminal Block
The PHOENIX CONTACT PT 4-FSI/F-LED 12 is a fuse modular terminal block designed for efficient and reliable power distribution. Its push-in connection simplifies wiring, while the integrated fuse provides overcurrent protection. The compact design and NS 35 mounting capability make it suitable for a wide range of industrial applications, including power supplies, lighting systems, and control panels. The terminal block supports conductors ranging from 0.2 mm² to 4 mm² and accommodates various AWG sizes. It is characterized by its robust construction, flame-retardant material (V0 rating), and compliance with industry standards like CSA and UL.
Phoenix Contact 3208951 Fuse Modular Terminal Block Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Weight per Piece (excluding packing): 9.6 g
- Custom tariff number: 85369010
- Country of origin: Poland
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 4 mm²
- Color: black
- Note: Current determined by fuse, voltage by LED; 15 A for single arrangement, 10 A for group arrangement. Derating curve available on request.
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Fuse: Type F (miniature)
- Fuse type: Flat
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum current with single arrangement: 15 A
- Voltage LED: 12 V DC
- Current LED: 2 mA
- Maximum load current: 15 A
- Nominal current IN: 10 A
- Nominal voltage UN: 12 V
- Open side panel: Yes
- Width: 6.2 mm
- Length: 56 mm
- Height NS 35/7,5: 36.5 mm
- Height NS 35/15: 44 mm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 10
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 1 mm²
- Connection method: Push-in connection
- Minimum stripping length: 10 mm
- Internal cylindrical gage: A4
- eCl@ss 4.0: 27141116
- eCl@ss 4.1: 27141116
- eCl@ss 5.0: 27141116
- eCl@ss 5.1: 27141116
- eCl@ss 6.0: 27141116
- eCl@ss 7.0: 27141116
- eCl@ss 8.0: 27141116
- ETIM 2.0: EC000897
- ETIM 3.0: EC000899
- ETIM 4.0: EC000899
- ETIM 5.0: EC000899
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
