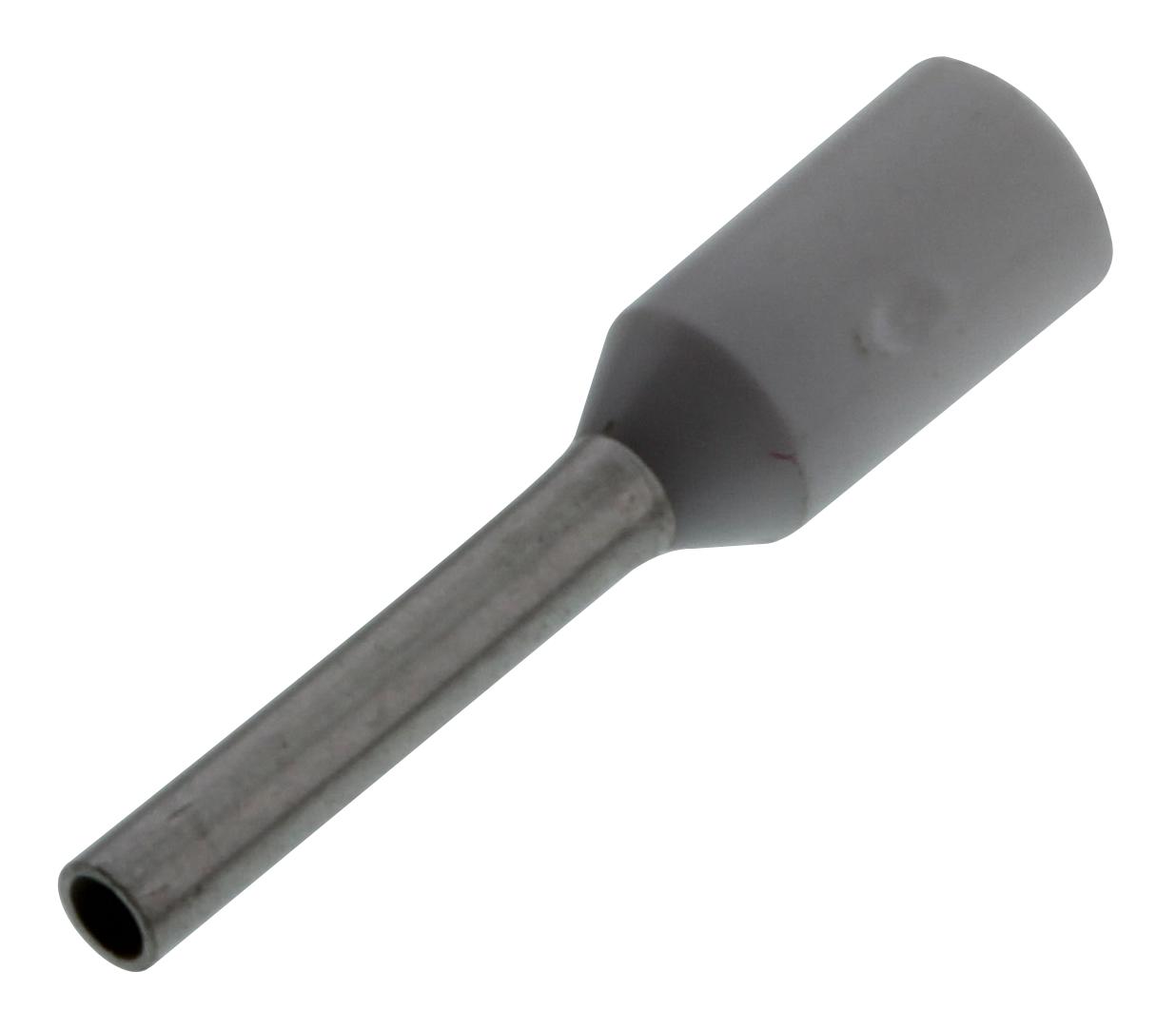

Phoenix Contact AI058WH Insulated Terminal Ferrule
The PHOENIX CONTACT AI 0,5 - 8 WH ferrule is designed to enhance the reliability of electrical connections while preventing wire splicing. Constructed from soft, tin-plated electrolytic copper, this ferrule ensures excellent conductivity and corrosion resistance. Its plastic sleeve provides insulation and protection, making it ideal for various industrial applications, including automated assembly lines and control systems. The ferrule is compatible with a range of conductor sizes and meets CSA standards, ensuring safe and efficient electrical connections. It is also RoHS compliant, demonstrating a commitment to environmental responsibility.
Phoenix Contact AI058WH Insulated Terminal Ferrule Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 100 pc
- GTIN: 4017918093662
- Weight per Piece (excluding packing): 0.080 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Sleeve length: 8 mm
- Length: 14 mm
- Maximum stripping length: 11 mm
- Insulating collar thickness: 0.25 mm
- Ferrule diameter: 1.1 mm
- Inner dimension of the insulating collar: 2.5 mm
- Sleeve wall thickness: 0.15 mm
- Short-term temperature: 120 °C
- Max. permanent temperature: 105 °C
- Components: free from silicone and halogen
- Flammability rating according to UL 94: HB
- Material: CU-DHP
- Coating: tin-plated (galvanic)
- Conductor category: Stranded conductors, class 2, 5, 6 / B, C, K, M
- Connection in acc. with standard: CSA
- Design according to standard: DIN 46228-4:2017-05
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- eCl@ss 4.0: 27060701
- eCl@ss 4.1: 27060701
- eCl@ss 5.0: 27400201
- eCl@ss 5.1: 27400200
- eCl@ss 6.0: 27400200
- eCl@ss 7.0: 27400201
- eCl@ss 8.0: 27400201
- eCl@ss 9.0: 27400201
- ETIM 2.0: EC000005
- ETIM 3.0: EC000005
- ETIM 4.0: EC000005
- ETIM 5.0: EC000005
- ETIM 6.0: EC000005
- ETIM 7.0: EC000005
- UNSPSC 6.01: 30212109
- UNSPSC 7.0901: 27121703
- UNSPSC 11: 27121703
- UNSPSC 12.01: 27121703
- UNSPSC 13.2: 27121703
